Recessed Deck Light — 16-Light Kit
Includes 16 recessed LED deck lights and 1 × 12 V DC power supply.
Recessed light. A complete 16-light kit.
Sixteen integrated LED lights and their 12 V DC power supply come together in this kit. Choose Warm White or White at checkout; each set has one fixed light color.
The stainless steel trim sits flush in a prepared hole, leaving the light face visible. Use the pucks to mark deck edges, stair risers and patio decking, with the cables routed behind the mounting surface.
Each light uses sealed male/female connectors on a parallel run. The LED is built into the puck, so service means replacing a compatible light unit rather than changing a bulb. This kit uses its own included DC supply.

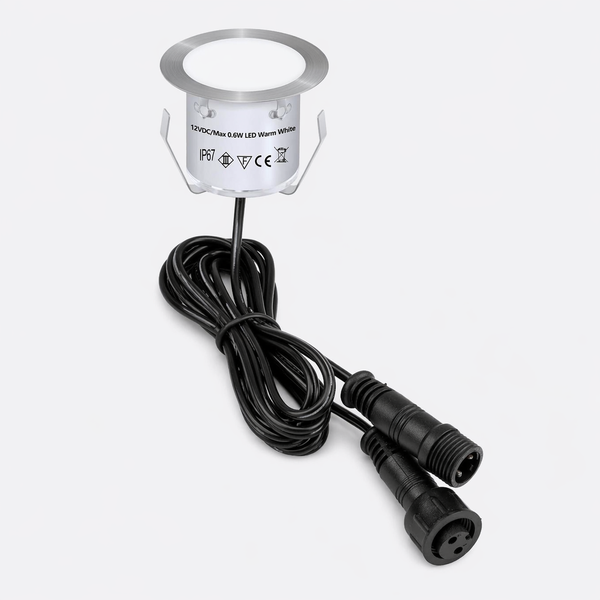

Integrated LED puck with stainless steel trim and plug connectors.

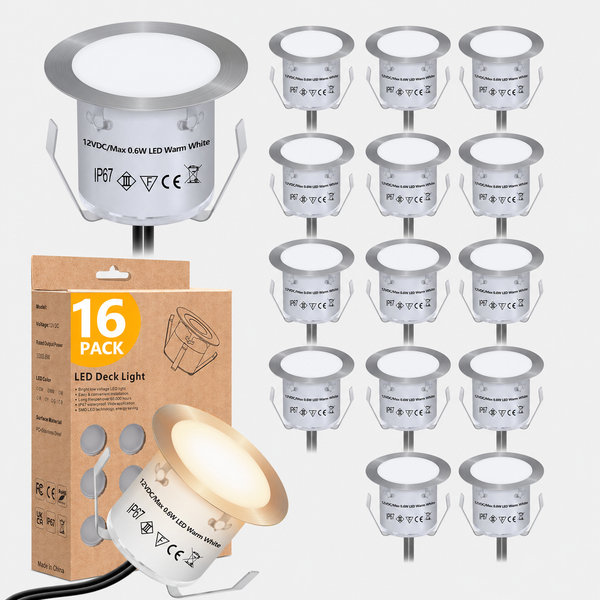

Warm White option: sixteen matching deck lights.

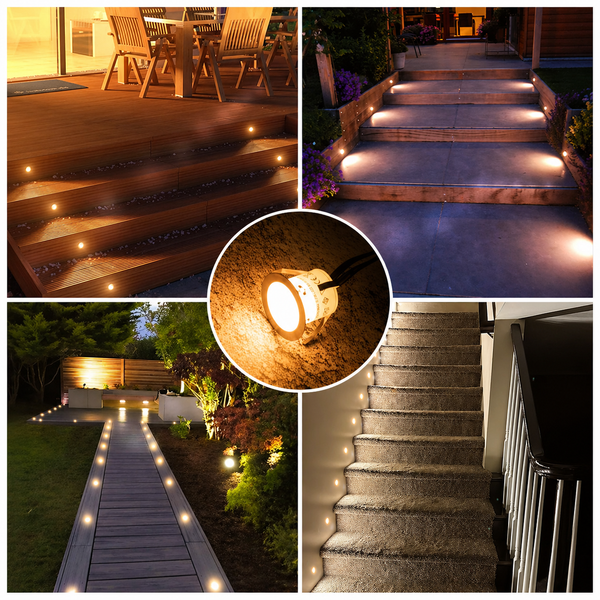

Recessed lights outlining deck and stair edges at night.
Where this light goes
Use it here
| Stair risers | Recess into the riser face to mark the step edge; check space behind the surface for the puck and cable. |
| Deck edges | Set into suitable deck boards to outline the edge after dark, with cable access below. |
| Patio decking | Mark the edge of a timber or composite patio deck where a recessed fitting can be installed. |
| Posts and vertical trim | Use a suitable timber face with enough depth for the recessed body and a protected cable route. |
Not this light — use these
| Paths and planting beds | Choose a path light for freestanding ground installation; these pucks need a prepared mounting surface. |
| Lawn, flush | Well light — 12 W, aimed up. |
| Ponds, fountains | Pond light, IP68 and submersible. |
| An existing landscape-lighting circuit | Keep this deck kit on its included 12 V DC supply. Choose compatible rail lights for a separate landscape-transformer circuit. |
Plan the run before you drill
| Step | What to check |
|---|---|
| 1 | Lay out the lights at the deck edge or stair risers. Test the complete set before making any holes. |
| 2 | Check the supplied puck and installation guide for the cutout and clearance. Prepare the holes, then seat each trim flush. |
| 3 | Connect the matching plugs and route the cables behind the boards, clear of sharp edges and moving parts. |
| 4 | Connect the run to the included 12 V DC supply and check every light. Follow the supplied guide for outdoor power and connection protection. |
Use the included supply
Individual light replacement
Specifications
| Light source | Integrated LED; replace the compatible light unit, not a bulb |
| Kit size | 16 recessed deck lights + 1 power supply |
| Color | Warm white · White |
| Rating | IP67 |
| Body | 304 stainless trim, acrylic lens |
| Connection | Sealed male/female plug connectors; parallel wiring |
| Power supply | Included 12 V DC supply; use the kit as a separate run |
| SKU | White: JBD-CW-16pack · Warm White: JBD-WW-16pack |
| Model | HZT-1001J |
* Manufacturer-stated.
What the numbers mean
Questions people ask
Do I need a landscape transformer?
Is the light color adjustable?
How should I space and install the lights?
What if one light goes dark?
What warranty covers these deck lights?
Can I return it?
In the box
| Deck lights | 16 |
| Power supply | 1 × 12 V DC supply |
| Manual | 1 |
If a part is missing
Email the part name and a photo; the replacement ships from the same U.S. warehouse. Contact us
Fulfilment, not warranty — the two are answered separately.
Every number here comes from our own SKUs or the manufacturer's test report. The ones we have not measured are not here.
Perfect!
We love these recessed led lights! Provide a great appearance and provide safety illumination for our new pool access deck additions! Used 2 full sets with separate power supplies per manufacturer instructions.
These lights worked perfect for my seasonal campsite deck, hopefully they last, very pleased so far.
Fantastic product, great price! Added these to my stairs going to my basement, added them to an existing light switch so I can turn them on/off when going to the basement, took some Sheetrock off the backside to get my wires hooked up and placed properly. 10/10 would buy again
We just had a brand new deck installed these lights are perfect for our steps.....it is really dark in our yard but these lights are so bright it really lights up the steps so well. (Pic taken around dusk so when full night they are even brighter) easy to install and hook up, great value, perfect size for the steps, they are flush into the steps so no one will trip over them.
Very bright
Simple installation, lights are bright but not glaring. Installed on our basement stairs. Used a 1” drill bit, lights slid in and appear to be solid.
Price is worth it. Finished job on our rear stairway has performed so well. We install a set on the front stairs as well. I was able to complete the install in a single day.
These lights were very easy to install into a 1 inch hole and the color temperature is nice and warm as a post to many LEDs which are cold. Color temperature is approximately 2700° Kelvin and makes for a comfortable feeling. The only thing I had to experiment with was using my current landscape transformer which work without any problem even though this system comes with one. You should have no issues with these lights and they look great installed
Very nice and easy to install. They are supposed to be dimmable but I can’t find out any information. Just plugging the driver into a dimmer does not do it. They are a little too bright
Great deal excellent product
Beau look
These are great! I used them in the risers of the stairs to my decks and they give just the right amount of light. Enough to be safe but not too bright! I will definitely use them again. They are very easy to install as well either just to themselves or as part of a larger low voltage design.
Bright lights that will go wonderful in our deck out front. Unfortunately, it does require more work such as drilling holes for installation.
Great product great product
My first set of lights were ordered and never delivered due to a shipping issue. The second order came fast and were easy to setup and fit into my predrilled holes from the previous lights I had installed. These lights are brighter and I do like them vey much. I have another set that I will be ordering later this year to replace another set of lights. Thanks for the great service and lights!
Nice and bright, fairly easy to install. I wish there was an extension for lights that are further away than the wiring harness that is included.
Installed on deck stairs. Working great. Installed dimmer to lower the brightness a little.
All 16 lights are recessed flush within 1.5” redwood decking, with beam fixed upward. All wiring assembly also under decking. This product served flawlessly throughout the California 2023 flooding. Very awesome product.
These lights are exactly what I wanted for my deck. We installed them on the bottom face of our lower deck and they are perfect lighting. Not too bright and don't too dim. Very easy installation as well.
I bought the 16 pack for my new outdoor deck. I needed to install these like a professional. I ran 16 gauge 2-wire cord, without ground(primary wire), around the perimeter of the deck on the inside of the rim . I cut the insulation off of (about a 1/4 inch) at each point to connect each light. I cut the individual connectors off each light at the appropriate length and rapped that wire around the bared connection spot along the primary wire. I connected the primary wire to a 12 volt power supply. I run the power supply through a digital astrologic timer. While the lights are far brighter than necessary, it works perfectly.
Easy to install and changed my deck appearance I love this product!
Not cold white
Used on my deck stairs and landing. The lights work great and were very easy to install. My only complaint is how bright they are. Just walking up to the house at night, the lights shine right in your eyes.
They work GREAT and seem really well built. Look amazing on our deck.
These lights are great. I used all lights(16) on the steps. 4 steps on a 8 foot wide set and you could land a small plane with the light. No one will miss a step because they couldn’t see. For what I wanted to do it was perfect.
The wire to each light was very close to not being long enough.
Installed these on my deck steps and wow!!!! Adds so much to look and nice to have light when walking up the steps at night. Very easy to hook up and only takes seconds to connect each light together. I’m used a 1” paddle bit to drill the hole and lights slid in perfect. Would buy again and this is a well designed product!!!! 5 stars!!!! I also added a timer so they only come on at night.
Snow and rain and they are still working.
Easy to install. The hardest part is measuring properly and marking the right spot before drilling.
