Path light · Pathway · Garden bed

China Hat Path Light — Replaceable G4

stock bi-pin bulb

10 yr

fixture warranty

a light, 2700 K

This light uses a replaceable G4 bulb. Standalone G4 bulbs are not currently available to order on this website. Contact support to confirm replacement compatibility and availability.

Finish: Oil-Rubbed Bronze

Pack: 4 Pack

4 Pack 6 Pack 12 Pack

$59.91

~~$0.00~~

$14.98item

Shipping calculated at checkout.

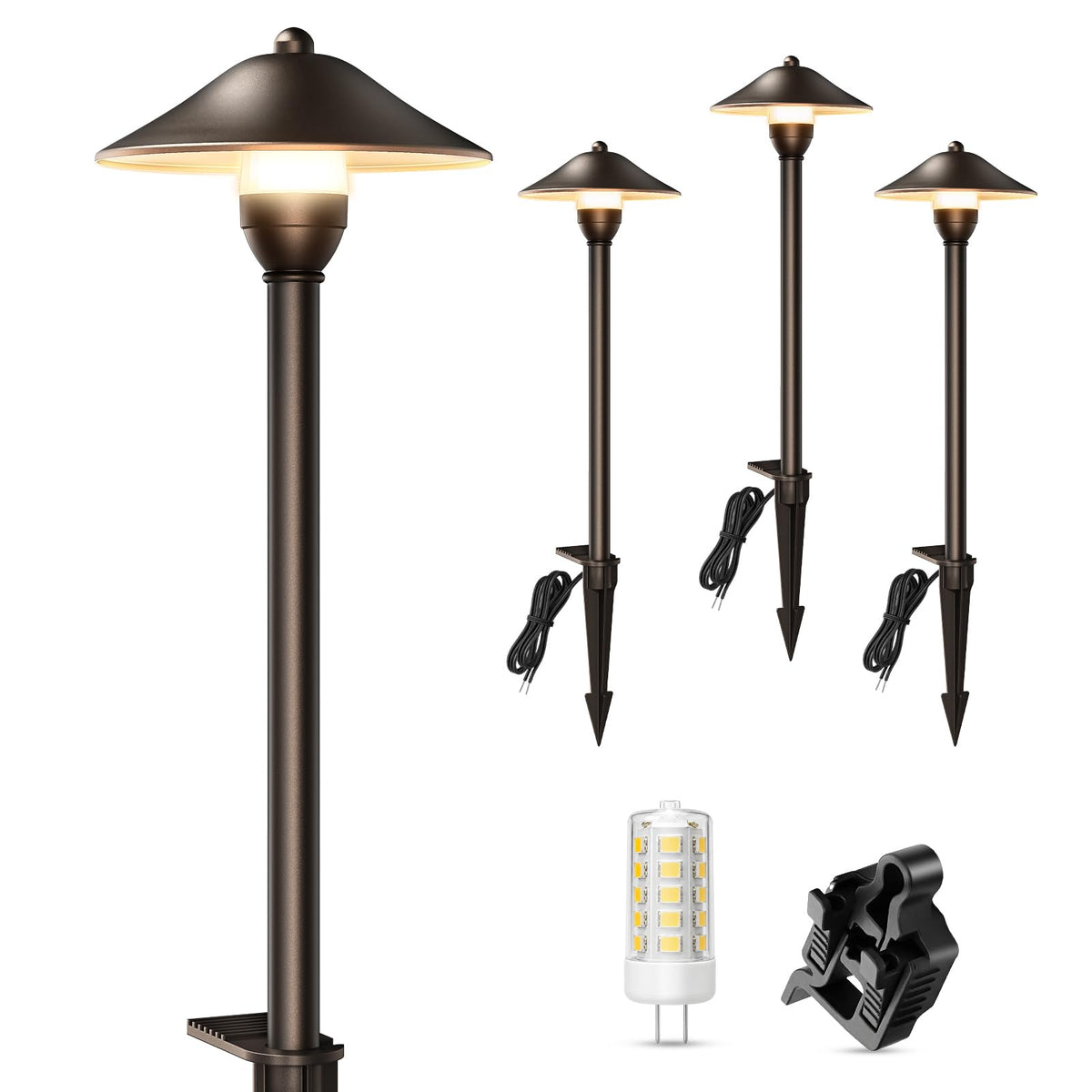

Each light comes with its G4 bulb, stake and connector; the 6- and 12-packs add a spare bulb. Transformer and main wire not included.

Ships from the U.S. warehouse. Free shipping on orders of $35 or more; orders leave in 1–2 business days.
10-year warranty on the aluminum fixture: terms.
30-day returns from delivery, no reason needed. Eligibility and shipping costs: policy.
Wiring and sizing questions answered within one business day.

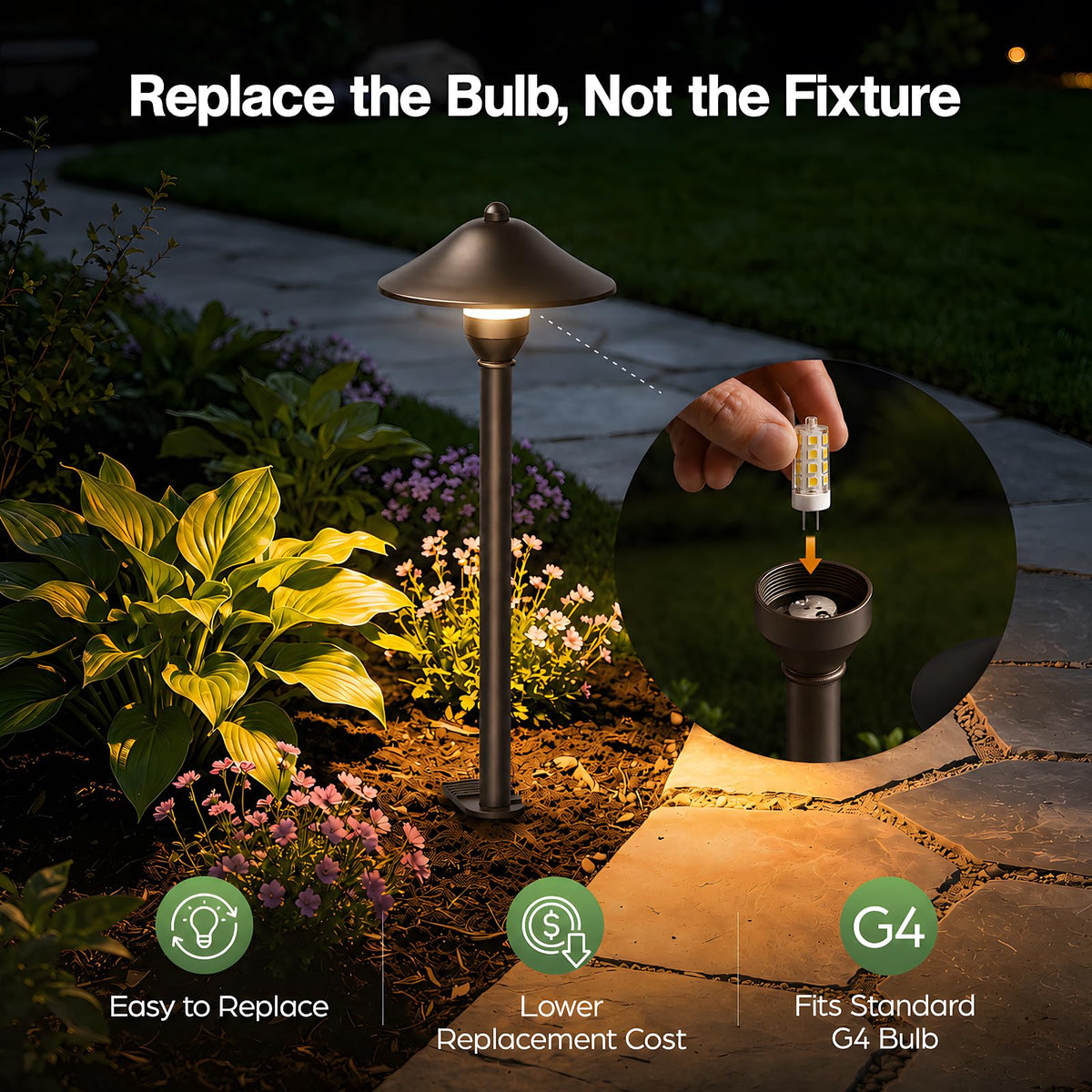

Why the bulb comes out

This light uses a replaceable G4 bulb, so the bulb can be changed while keeping the fixture.

Disconnect power before opening the head or changing the bulb. Follow the instructions for your exact model, and restore the lens and seal correctly before use.

Choose a replacement that matches the fixture's rated input, AC/DC requirements, wattage limit and available space. A matching G4 base or a different color temperature alone does not confirm compatibility.

Standalone G4 bulbs are not currently available to order on this website. Contact our support team to confirm a suitable replacement and current availability.

For help choosing a replacement, see G4 Replacement Bulb Support. Warranty requests are reviewed under the warranty terms.

Lift the shade to access the G4 bulb.

Pull the G4 bulb straight out of its socket.

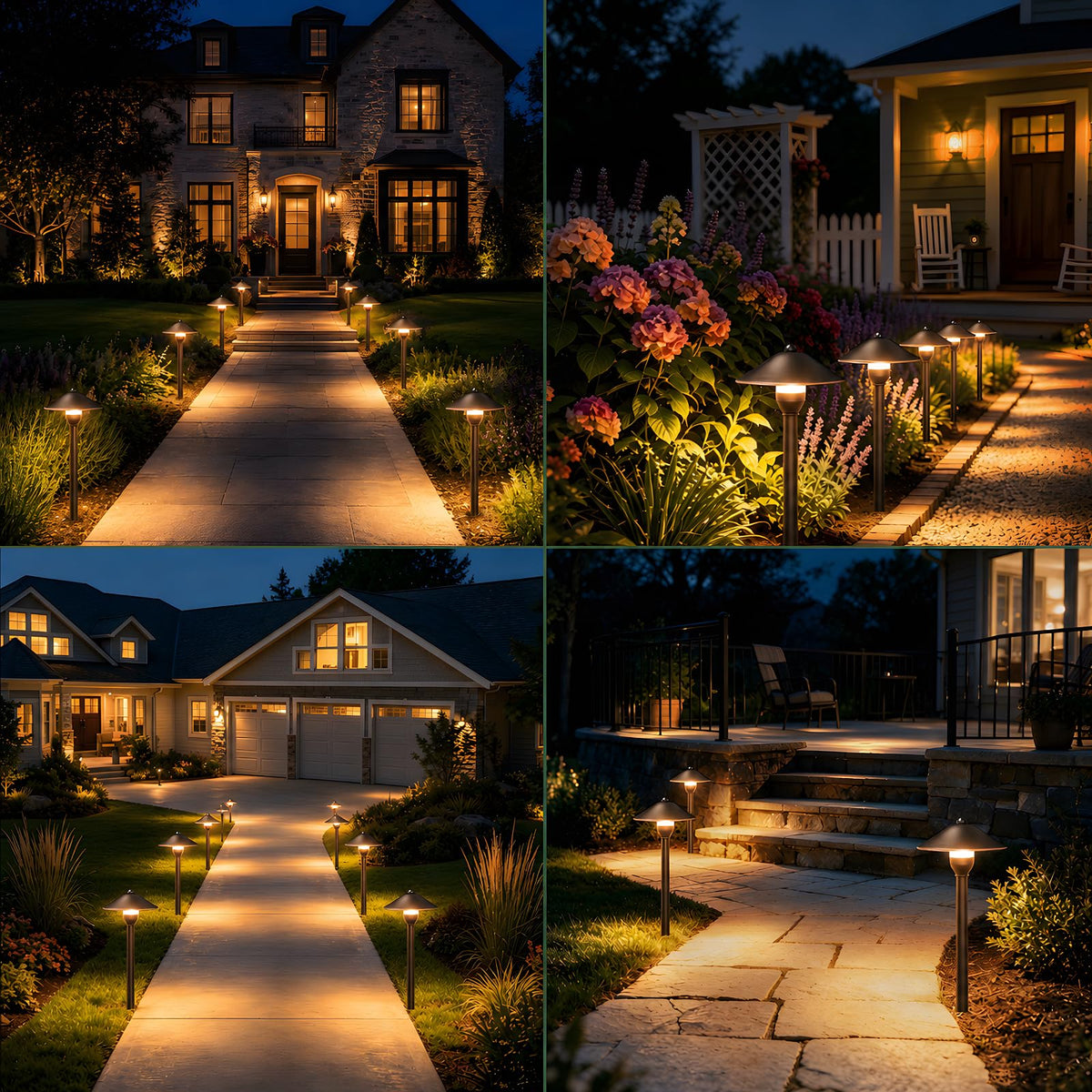

Where this light goes

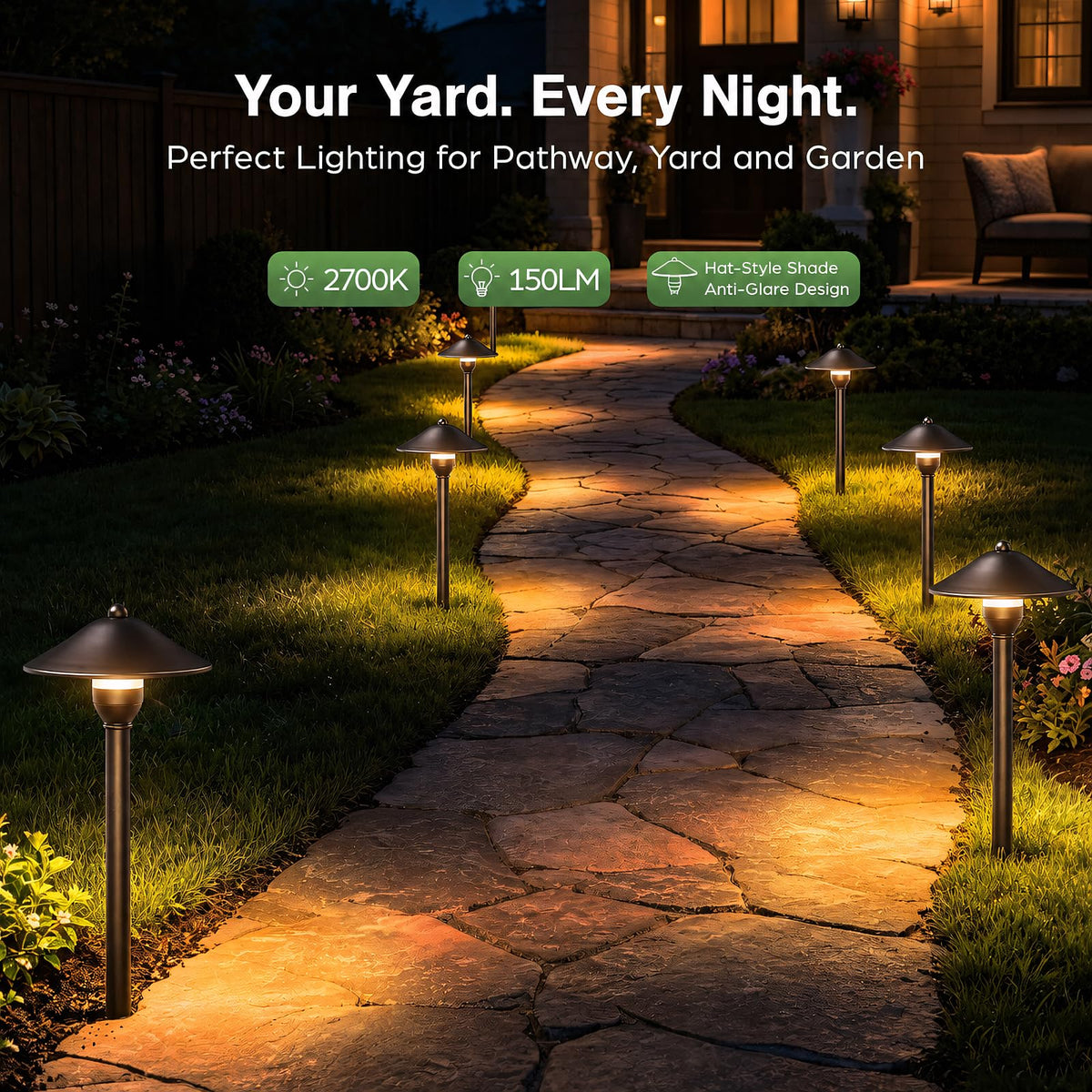

The flat, wide shade lights the ground beside a path, a drive or a bed, from knee height, pointed down.

Use it here

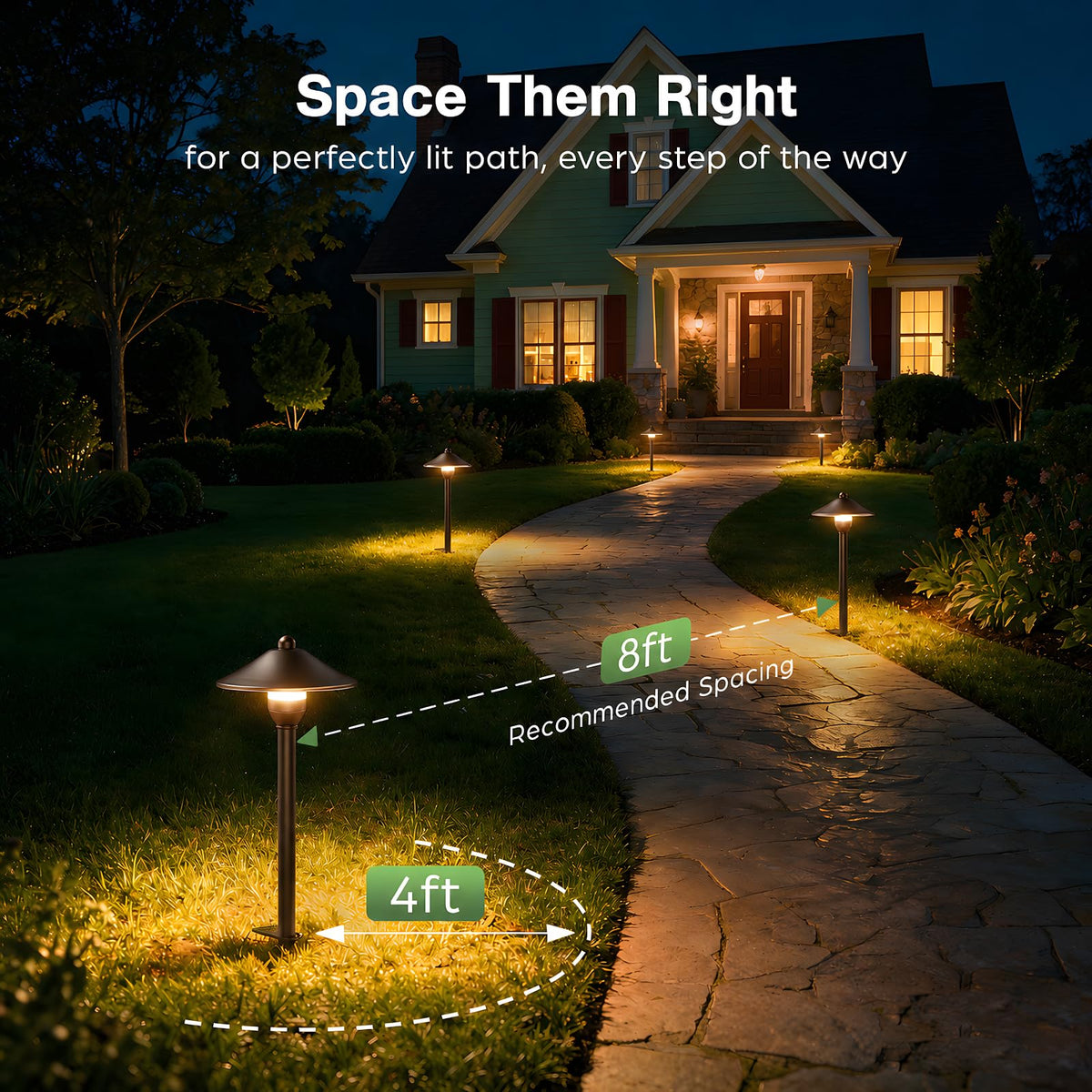

Walkway / front path	Off the paving edge, on the lawn side. 6–8 ft apart.
Driveway edge	Along the lawn edge, 10 ft apart. One side reads the edge.
Garden bed border	The wide shade keeps light on the mulch, not across the patio.
Patio perimeter	In the planting around the edge, not in the paving.

Not this light — use these

Steps, deck edges	Recessed deck light — sits in the riser.
Trees, house wall	Spotlight or well light — they throw light up.
Retaining walls	Hardscape light, under the capstone.
Ponds, fountains	Pond light, IP68. This one is IP65.

How many, and which transformer

Measure the run and read the row. Every count is this light at 3 W, with the transformer sized to 80% of its rating.

Walk or bed edge	6 ft apart	8 ft apart	10 ft apart	Packs at 8 ft
20 ft	4	3	3	4
40 ft	7	6	5	6
60 ft	11	8	7	4 + 4
80 ft	14	11	9	12
100 ft	17	13	11	6 + 4 + 4
150 ft	26	19	16	12 + 4 + 4
200 ft	34	26	21	12 + 6 + 4 + 4

Divide the run by the spacing, add one for the far end. 6 ft reads as a continuous pool; 10 ft is accent, with dark between. A 200 W transformer carries 53 of these, a 300 W carries 80. Packs: 4, 6 or 12 lights.

One run, everything it takes. A 60 ft walk at 8 ft is 8 lights (4 + 4), the 2-Zone Transformer at 200 W, and 100 ft of 16 AWG Landscape Wire. The load is 24 W; the transformer carries 160 W.

Mixing these with spotlights or deck lights on one transformer is a whole-yard question — Plan my yard works three yards end to end.

Choose your path light setup

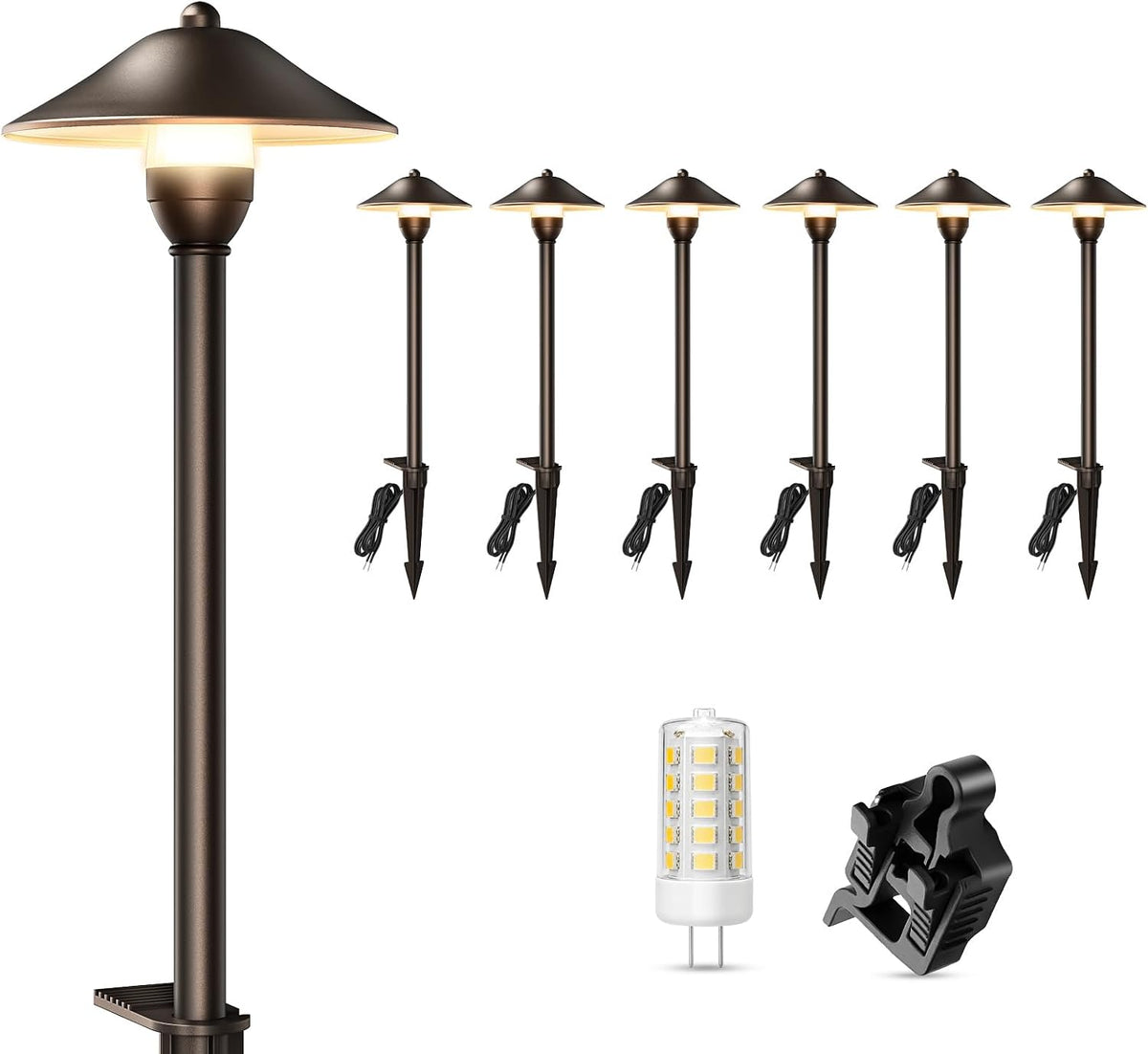

6-pack Oil-Rubbed Bronze — $84.91 USD

12-pack Sand Black — $149.91 USD

Both packs use replaceable 3W G4 bulbs with warm 2700K light. Each fixture includes its G4 bulb, stake and connector; the 6- and 12-packs also include a spare bulb. Transformer and main landscape wire are not included.

Need a transformer?

Optional 2-zone 300W transformer — $79.91 USD. Its 12V/14V AC output is within these lights' stated 12–15V AC input range. Check fixture load, wiring and installation instructions. A 300W transformer is not the minimum required for a 6- or 12-light pack. Products are sold separately.

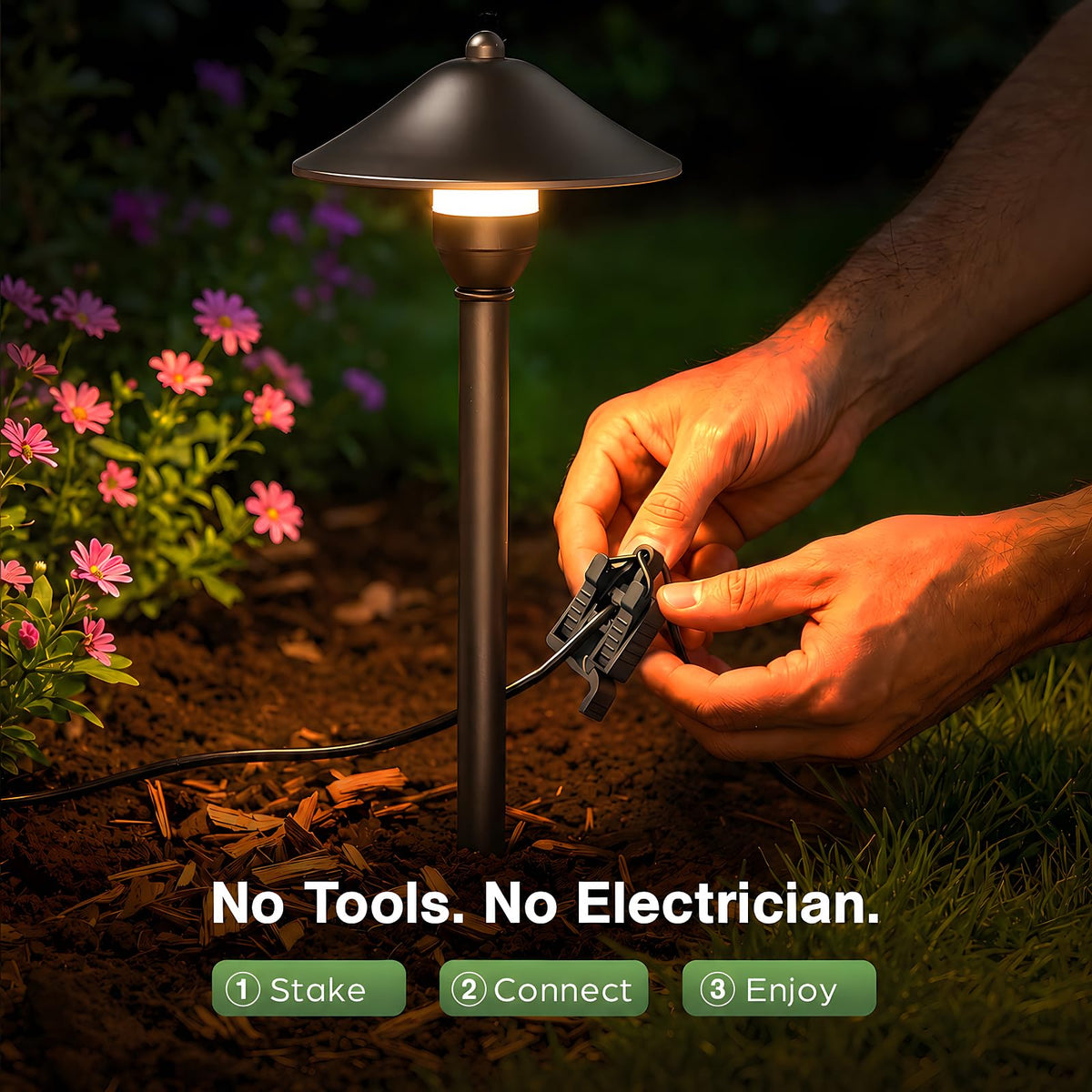

Putting it in

Lay them out, run the wire past the last one, clip a connector at each, power up and check, then stake them and bury the wire 6 in deep. A trowel and an afternoon for twelve. Step by step

Runs on what you have

Check this fixture's input rating, power-supply requirements and connection method before connecting it to an existing system. Follow the instructions for the exact model. Ask about compatibility

6 in is the NEC 300.5 minimum for ≤30 V landscape wiring, not our measurement.

Specifications

Bulb	G4 bi-pin LED, 3 W, 2700 K — replaceable, stock part
Light output	150 lm a light*, 120° beam pointed down

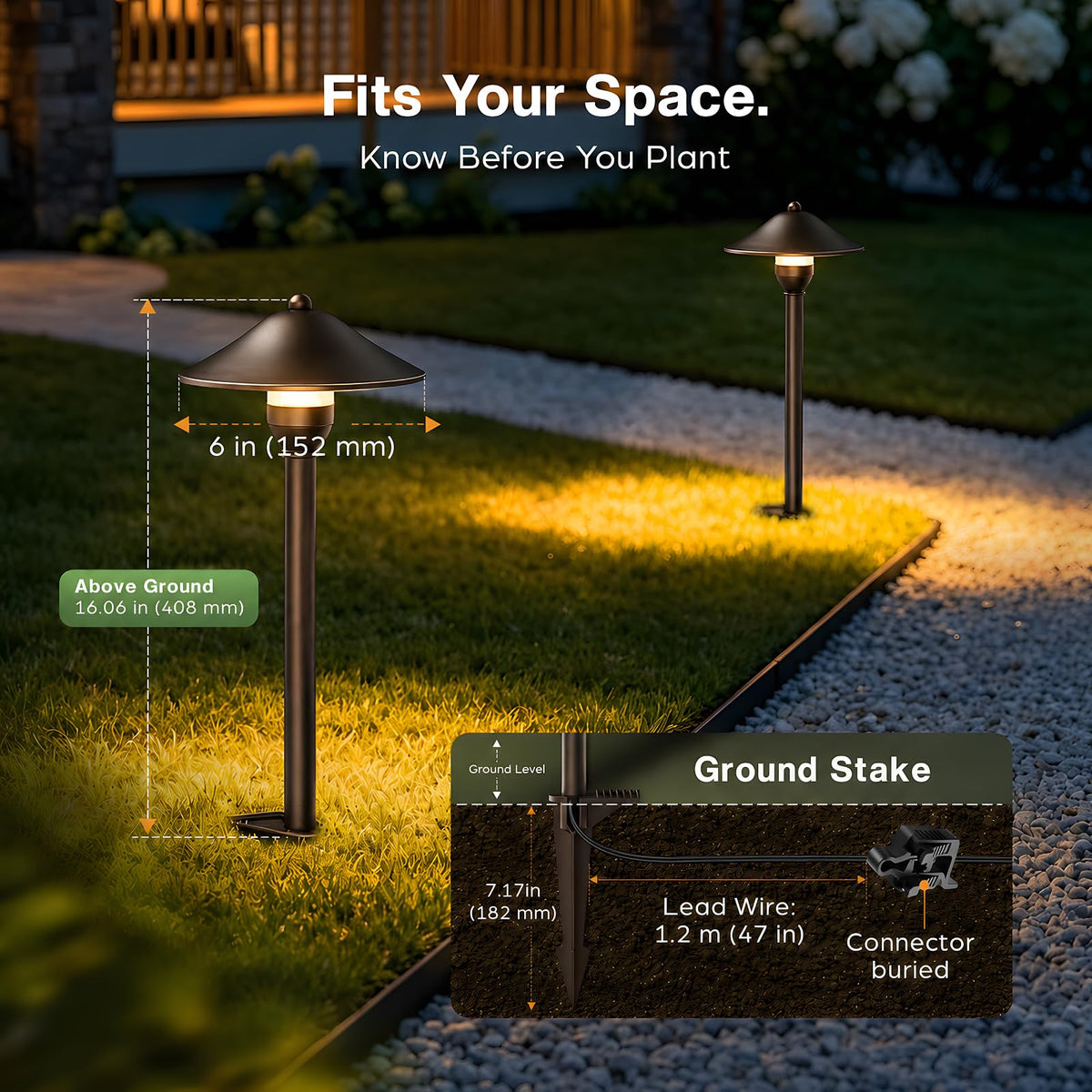

Overall height	23.2 in (590 mm); about 16 in (408 mm) above ground
Input	12–15 V AC · 12–24 V DC

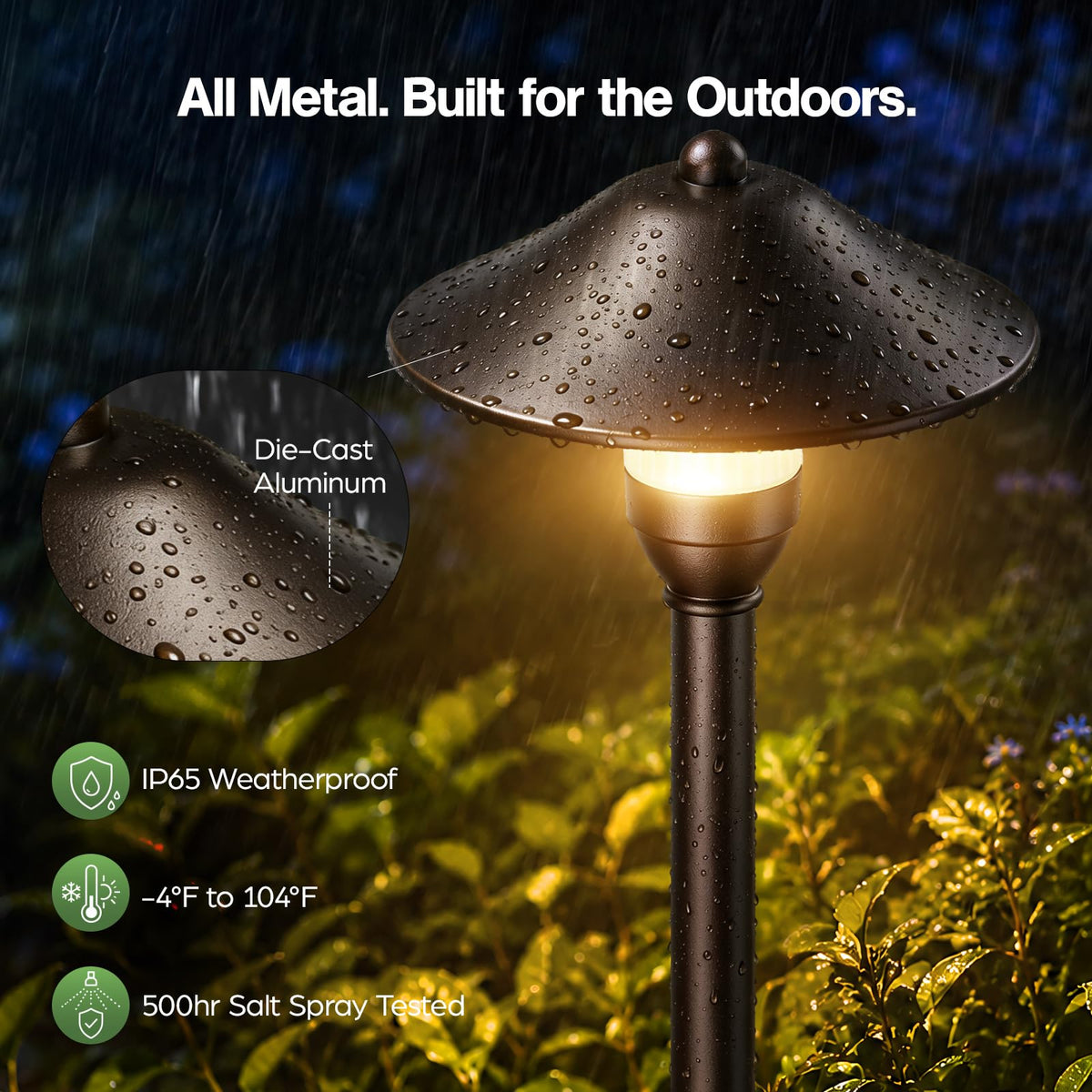

Rating	IP65, O-ring seal under the cap; UV-resistant PC lens
Material · coating	Die-cast aluminum; powder coat 70–100 μm, salt-spray tested to 500 hours

More specifications

Shade diameter	6.0 in (152 mm)
Stem · stake	Stem Ø0.8 in (20 mm) · stake 7.2 in (182 mm), die-cast aluminum
Lead wire	47 in, 20 AWG
Connection	Quick connector in the box, one per light — takes 12–16 AWG main wire
Operating temperature	−4 to 104 °F (−20 to 40 °C)*
Finish	Oil-rubbed bronze · Sand black
Certification	ETL listed light source · UL listed cord* — not a whole-fixture listing
Model	LJDO6

* Manufacturer-stated; the test report is on file and is not published on this page.

What the numbers mean

2700 K is the color of most porch bulbs, so the path reads as part of the house, not a runway.

3 watts a light: a 200 W transformer runs 53, a 300 W runs 80. The 47-inch lead reaches the main wire without an extension.

The coating is the one part that never comes off — the bulb, the stake and the connector all do — so it is the one we made thick: 70–100 μm, tested to 500 hours in salt spray*. It meets sprinkler water, a trimmer at the base, wet soil, and winter salt.

Questions people ask

The bulb went out — what do I buy?

Standalone G4 replacement bulbs are not currently available to order on this website. Before choosing a replacement, match the exact fixture's rated input voltage, AC/DC requirements, wattage limit and available space. A G4 base alone does not establish compatibility.

G4 Replacement Bulb Support explains how to request help and confirm current availability. Include the fixture name or product link and the original bulb markings if available.

How bright is it on the ground?

150 lumens a light through a 120° beam pointed down, so the light lands on the ground, not in your eyes. At 6 ft apart the pools join; at 10 ft there is dark between.

Can I use a warmer, cooler or colored bulb?

A different color temperature may be suitable only if the replacement also matches the exact fixture's electrical and physical requirements. A G4 base alone does not confirm compatibility; check the rated input voltage, AC/DC requirements, wattage limit and available space before ordering.

If you are unsure, use G4 Replacement Bulb Support to ask our team. Standalone G4 bulbs are not currently available to purchase on this website.

Is a transformer included?

No. The box has the lights, their G4 bulbs, stakes and connectors. They run on a 12 V landscape transformer and direct-burial main wire — ours are the 2-Zone Transformer and Landscape Wire. Already have a system? They go on it.

The trimmer hit one. Now what?

Hits come from below — stem and stake — which is why the wall is thick where they meet. A light that leans after a wet week is pushed back in by hand; the wire stays connected. If one is broken, email us the product name and a photo.

Will it run on the 12 V transformer I already own?

Input is 12–15 V AC or 12–24 V DC, which covers standard landscape transformers.

What is the warranty?

Ten years on the aluminum fixture. The bulb has its own terms on the warranty page. A claim is the order number, the product name and one photo; the replacement ships from the U.S. warehouse. Warranty terms

Can I return it?

Return eligibility, return shipping costs and refund approval are governed by our Return Policy. Contact support@hiboitec.com before sending any item back. For a damaged, missing or faulty item, include your order number, product name and a photo so we can review the issue. Return policy

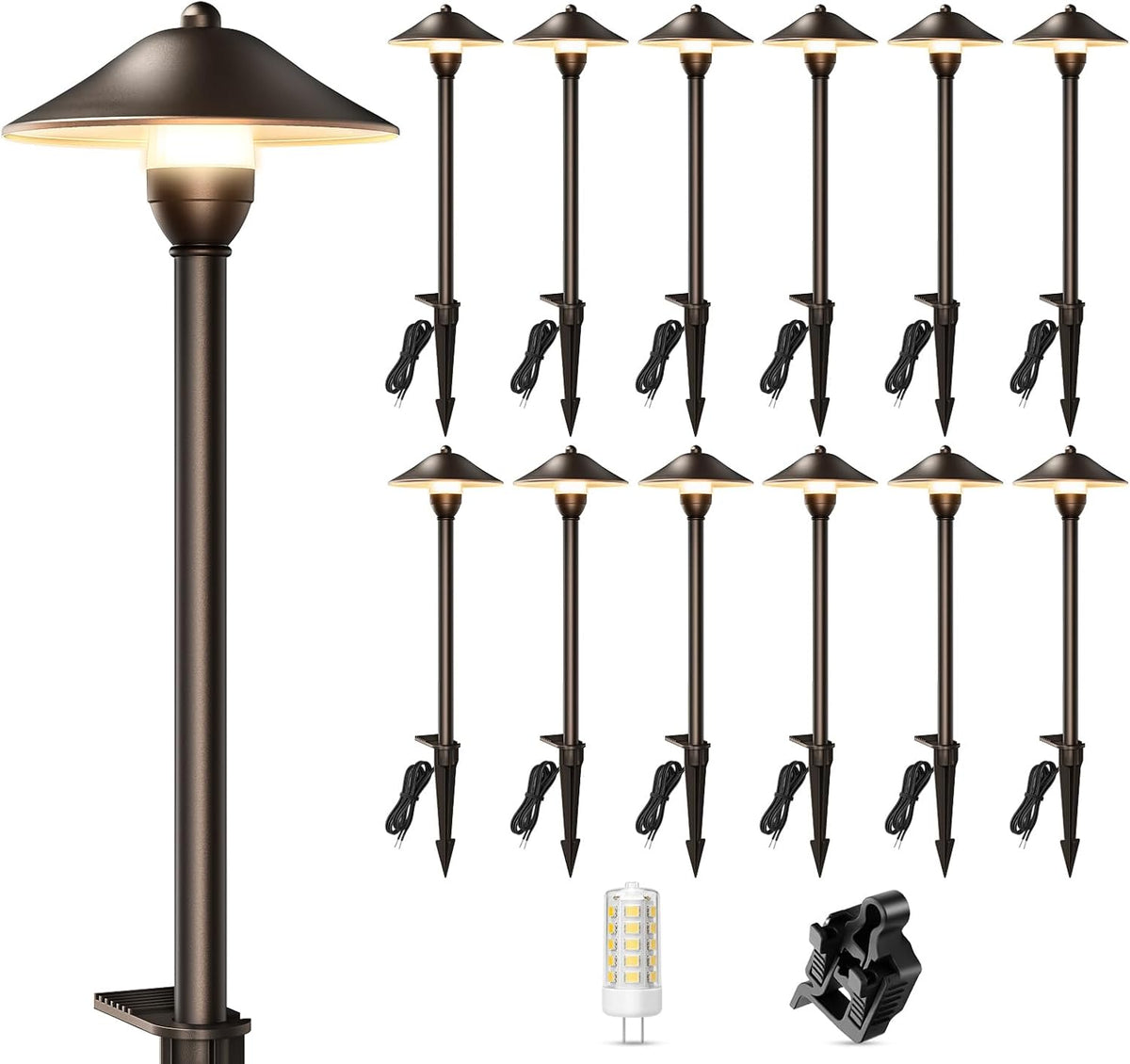

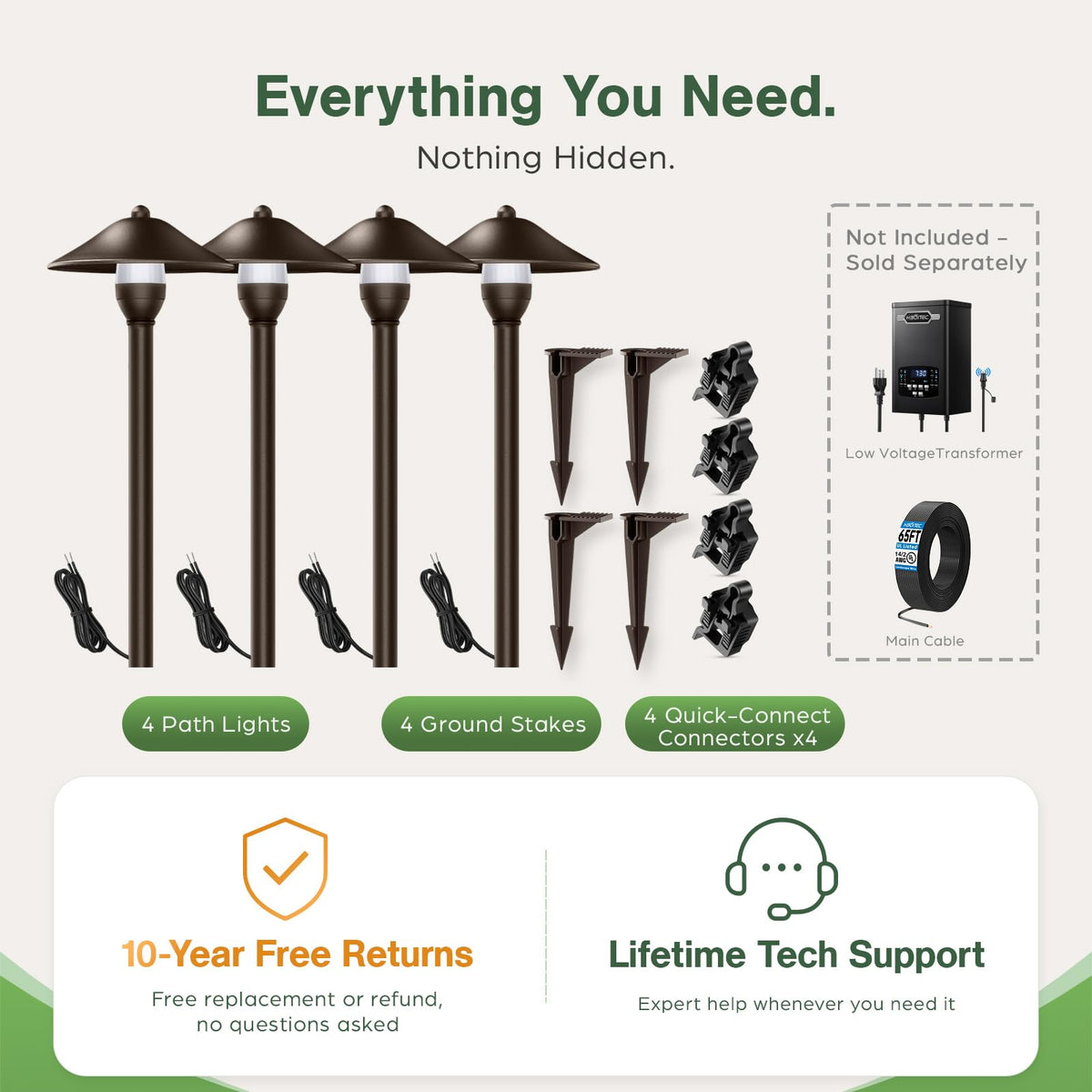

In the box

Path lights	4 / 6 / 12, per pack
G4 bulbs	Installed, one per light; the 6- and 12-packs carry one spare
Stakes	One per light
Quick connectors	One per light
Manual	1

If a part is missing

Email the part name and a photo; the replacement ships from the same U.S. warehouse. Contact us

Fulfilment, not warranty — the two are answered separately.
