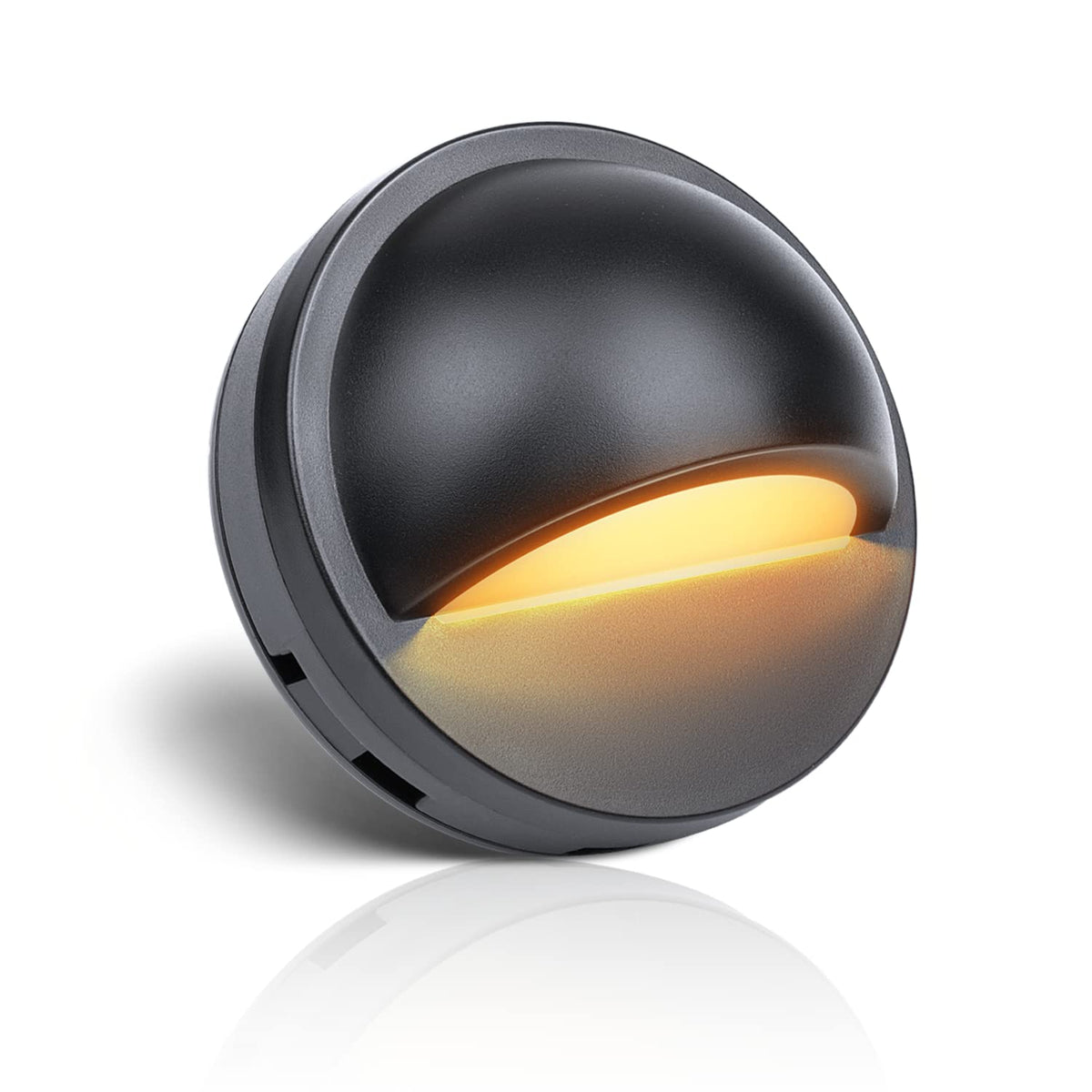

Rail Light, Half-Moon — 2.5 W
Each light comes with three screws, anchors and two wire nuts. Transformer and main wire not included.
Why this one is sealed
The LED in this light is integrated — not a bulb you take out. It sits on the outside of a post or a rail, in the rain, so the LED and its lead are sealed behind the lens on a rubber gasket — IP67 — with nothing to open.
So there is no cap to unscrew. When it fails, the unit you replace is the light, and inside the warranty that replacement is ours — order number, product name, one photo.
The path lights, the spotlight and the bulbs are built the other way, with a stock bulb you can pull. We say which is which on every page.
IP67 sealed light housing.
Frosted lens.

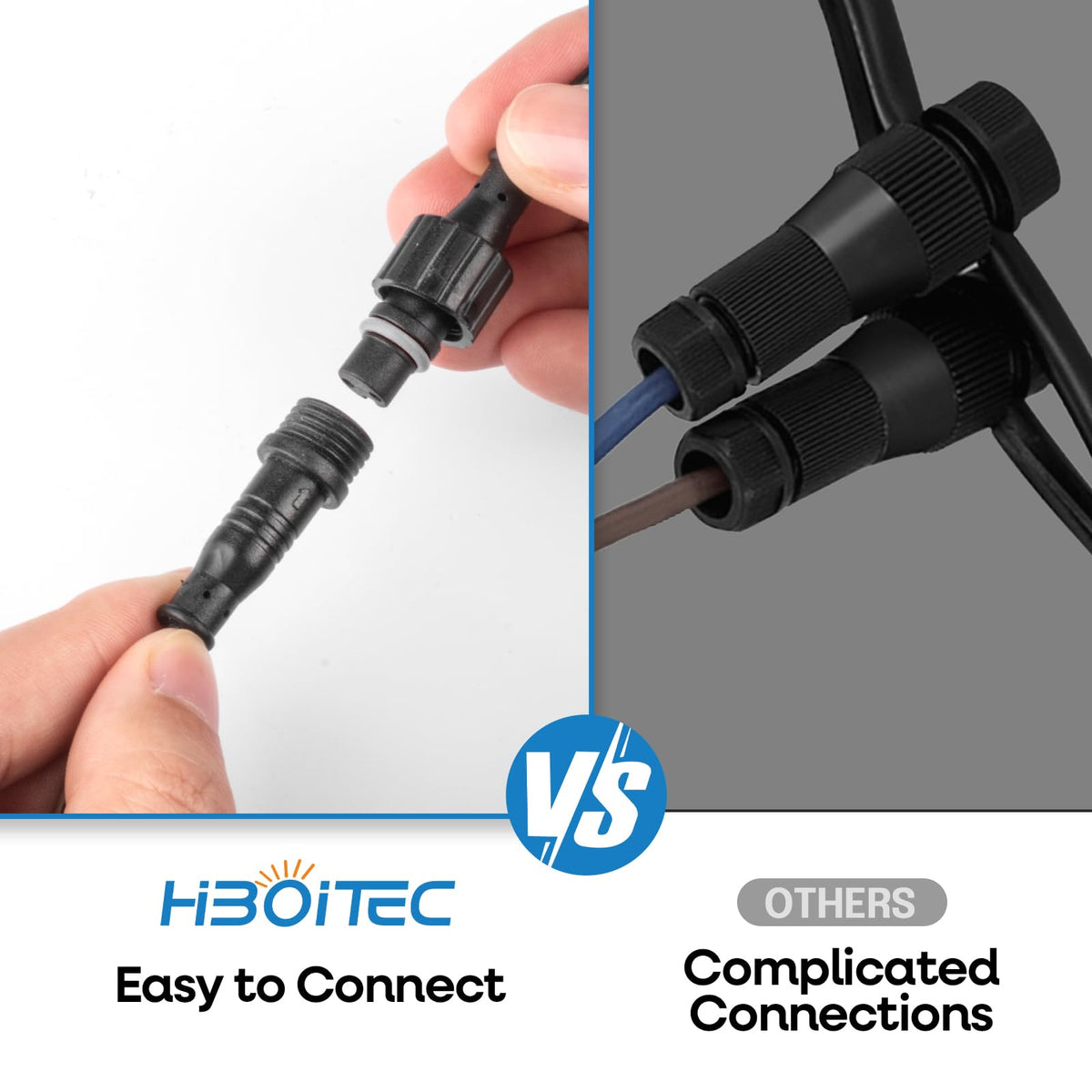

Factory plug connection.

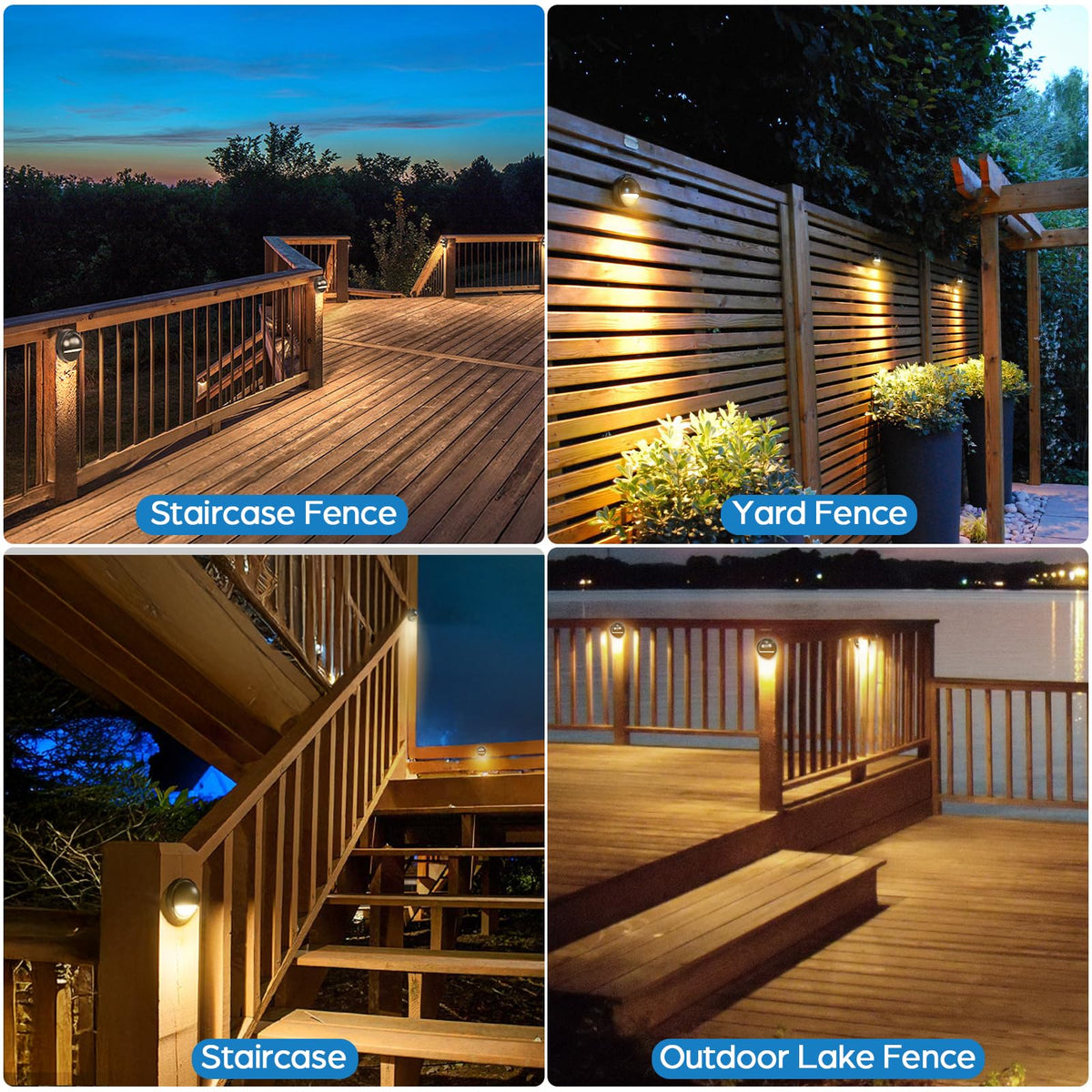

Where this light goes
Use it here
| Fence posts | One per post, at knee height, hood up. |
| Deck posts and rails | On the post face, so the light drops onto the boards. |
| Stair side walls | On the stringer or the wall beside the treads. |
| Patio walls | Along a low wall, 6–8 ft apart, so the paving edge reads. |
Not this light — use these
| In the boards, flush | Recessed deck light — sits in a drilled hole. |
| Paths, beds | Path light — on a stake, in the ground. |
| Lawn, flush | Well light — 12 W, aimed up. |
| Ponds, fountains | Pond light, IP68 and submersible. |
How many, and which transformer
| Lights | Load on the run | 200 W transformer | 300 W transformer |
|---|---|---|---|
| 6 | 15 W | yes | yes |
| 12 | 30 W | yes | yes |
| 24 | 60 W | yes | yes |
| 48 | 120 W | yes | yes |
| 64 | 160 W | at the limit | yes |
Putting it in
Runs on what you have
Follow the installation instructions for this product and the cable used. Mounting and cable routing depend on the fixture and its location.
Specifications

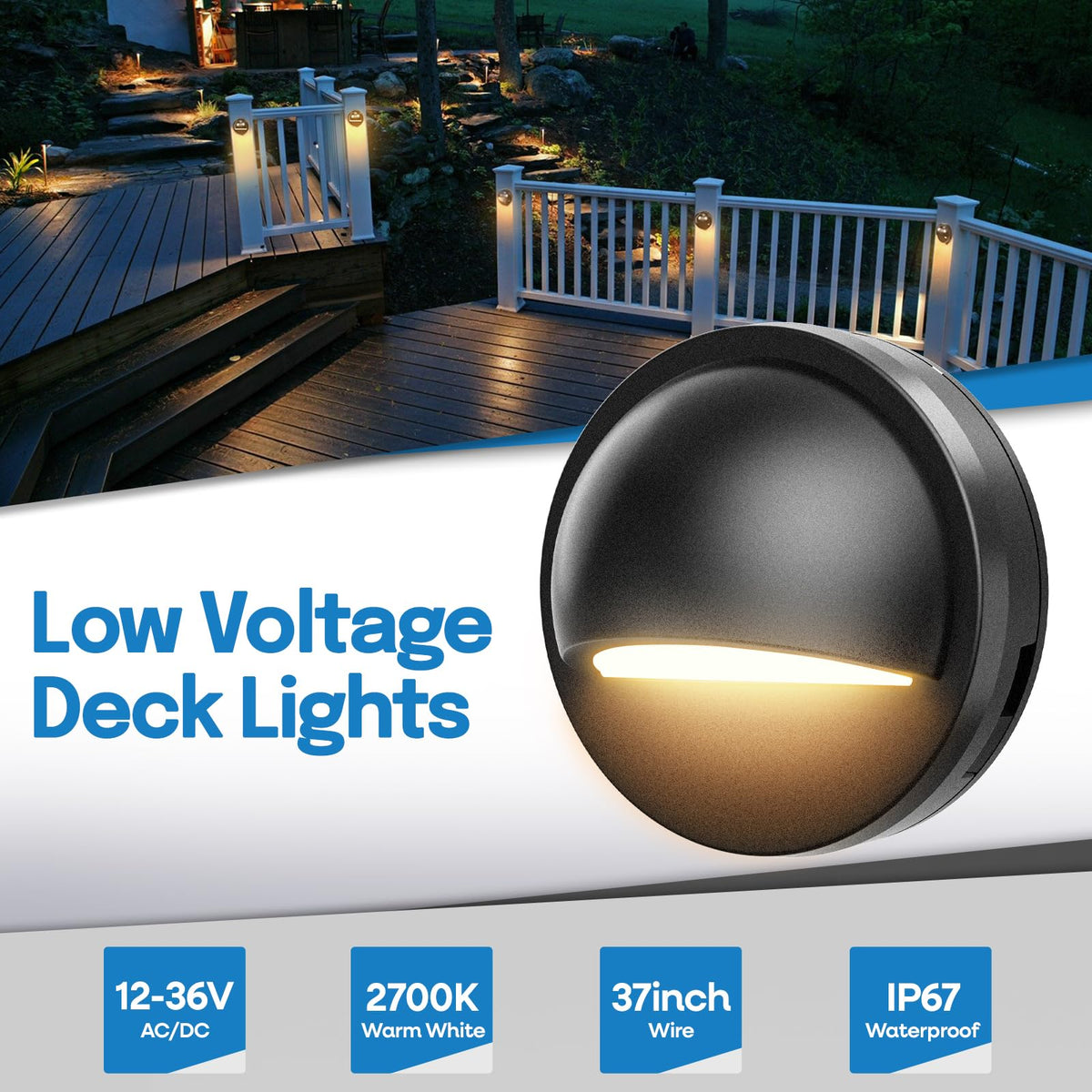

| Light source | Integrated LED, 2.5 W, 18 chips |
| Light output | 180 lm a light* |
| Color | 2700 K |
| Input | 12–36 V AC · DC |

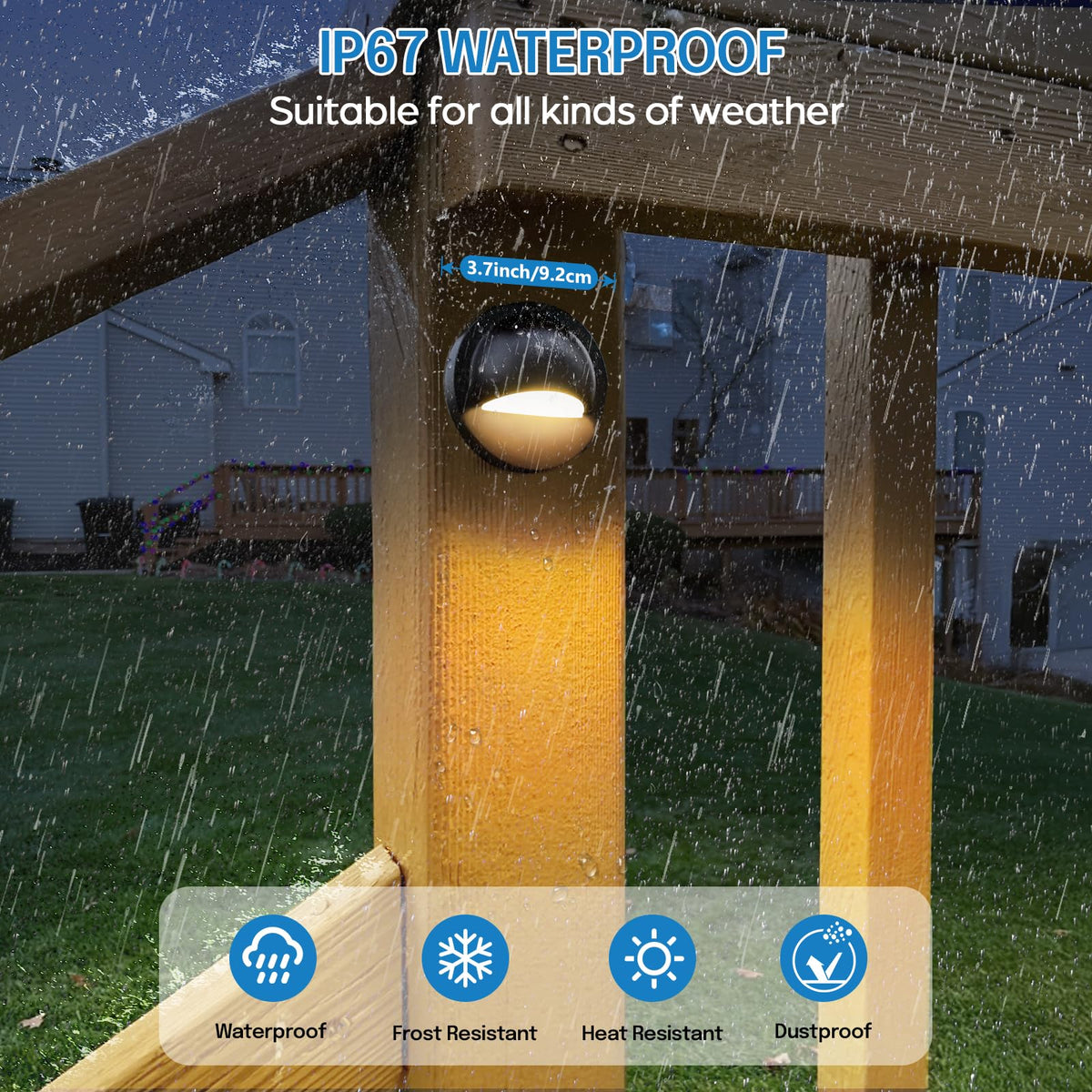

| Rating | IP67 — rubber gasket, sealed wire exit |
| Body | Polycarbonate and ABS, frosted lens |
More specifications

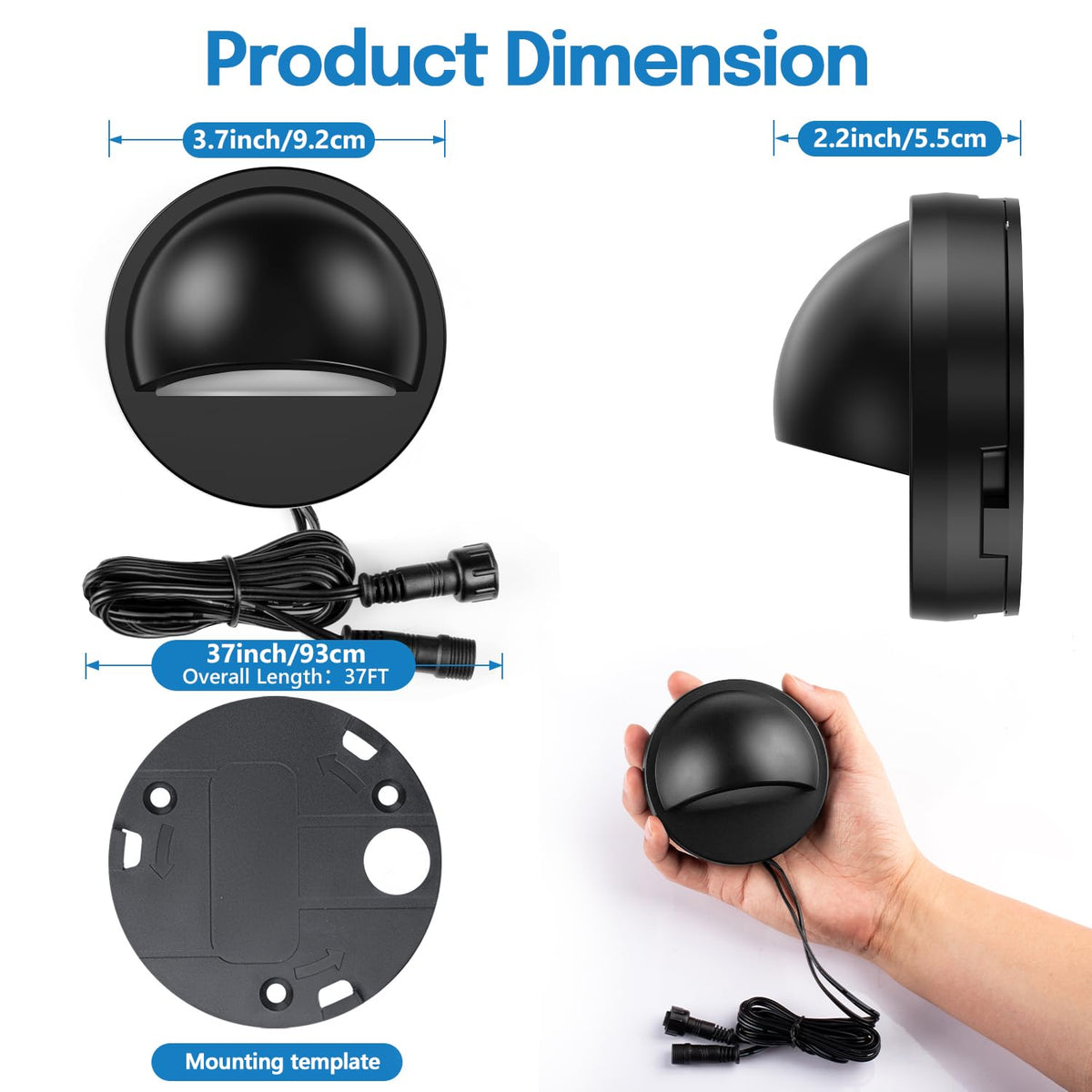

| Size | 3.5 × 2 × 3.5 in |
| Lead wire | 35 in (3.2 ft), UL listed* |
| Operating temperature | −4 to 113 °F (−20 to 45 °C)* |
| Dimmable | No |

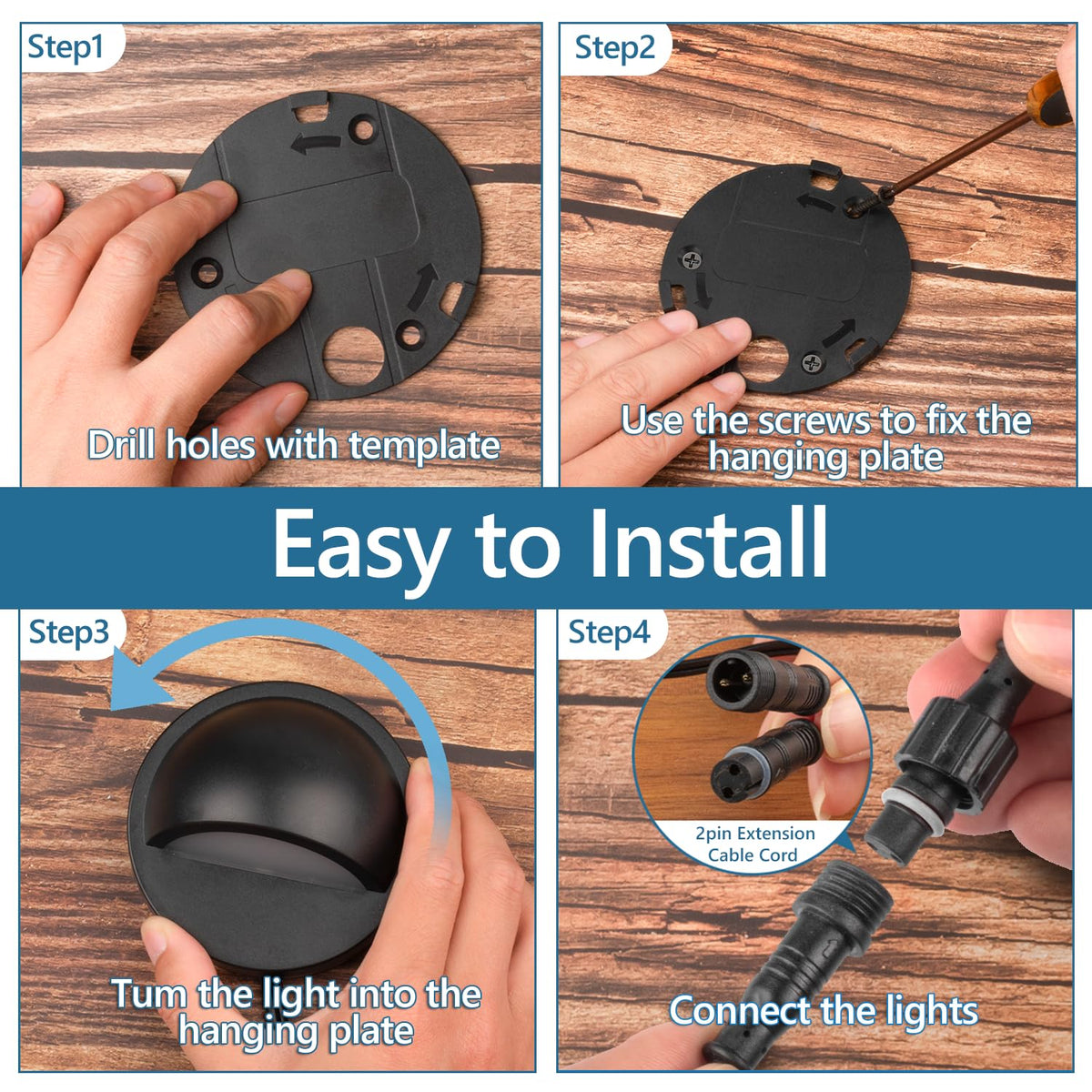

| Mounting | Three screws and anchors per light, in the box |
| Rated life | 50,000 h* |
| Model | HZT-1008J |
* Manufacturer-stated; the test report is on file and is not published on this page.
What the numbers mean
Questions people ask
Is it metal?
How does it connect?
Will it run on the 12 V transformer I already own?
How far apart?
Is a transformer included?
What is the warranty?
Can I return it?
In the box

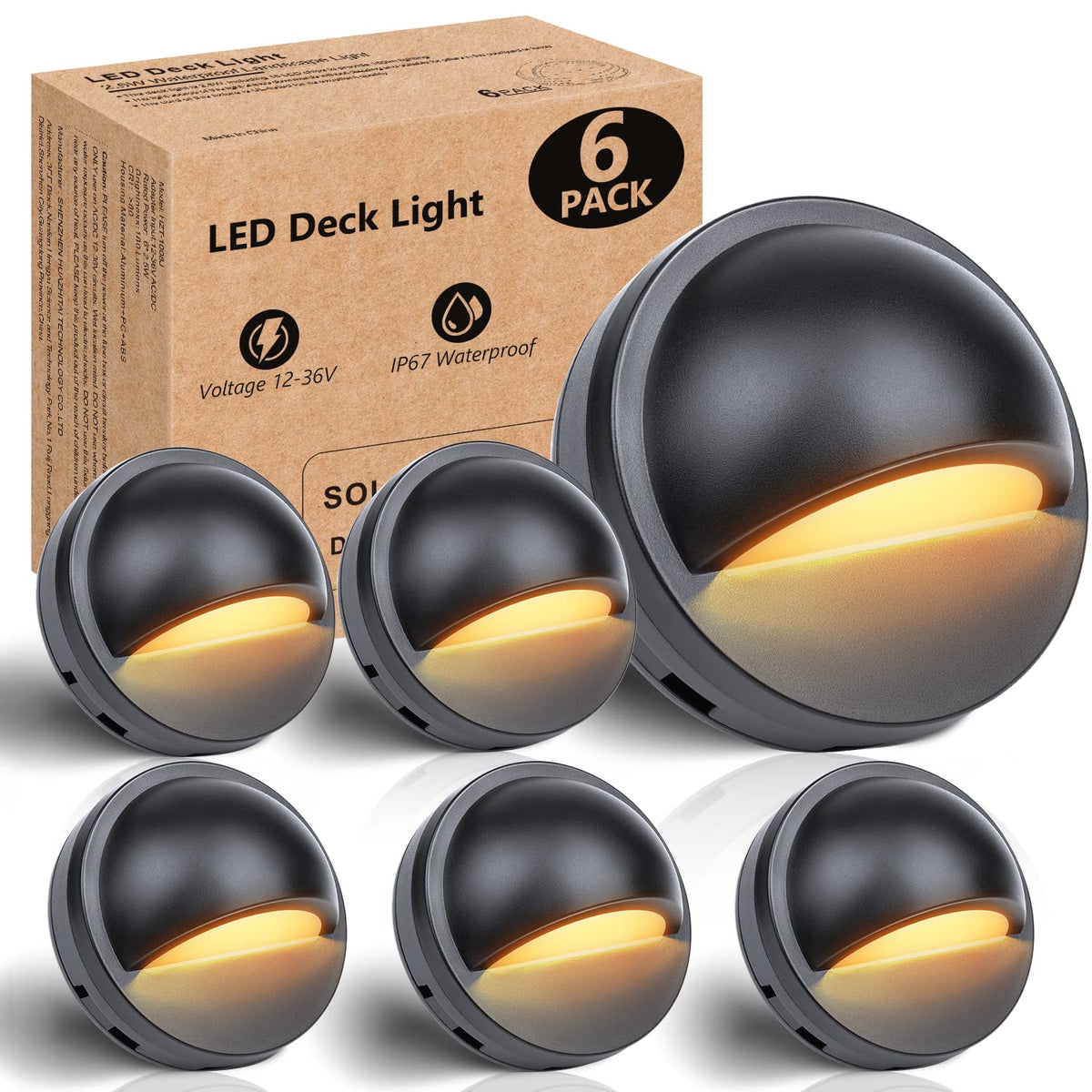

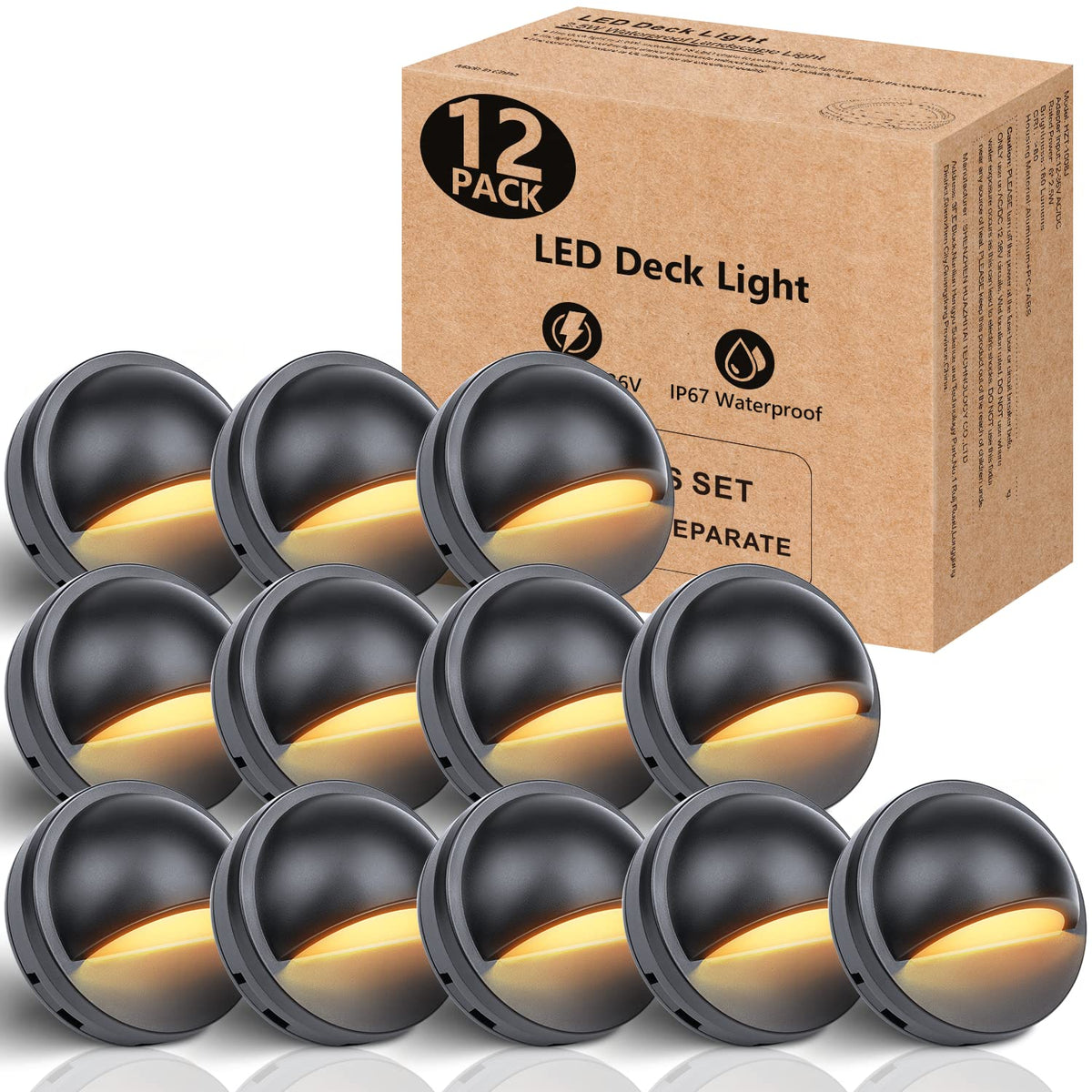

| Rail lights | 1 / 6 / 12, per pack |
| Screws · anchors | Three per light |
| Wire nuts | Two per light |
| Manual | 1 |
If a part is missing
Email the part name and a photo; the replacement ships from the same U.S. warehouse. Contact us
Fulfilment, not warranty — the two are answered separately.
Every number here comes from our own SKUs or the manufacturer's test report. The ones we have not measured are not here.
