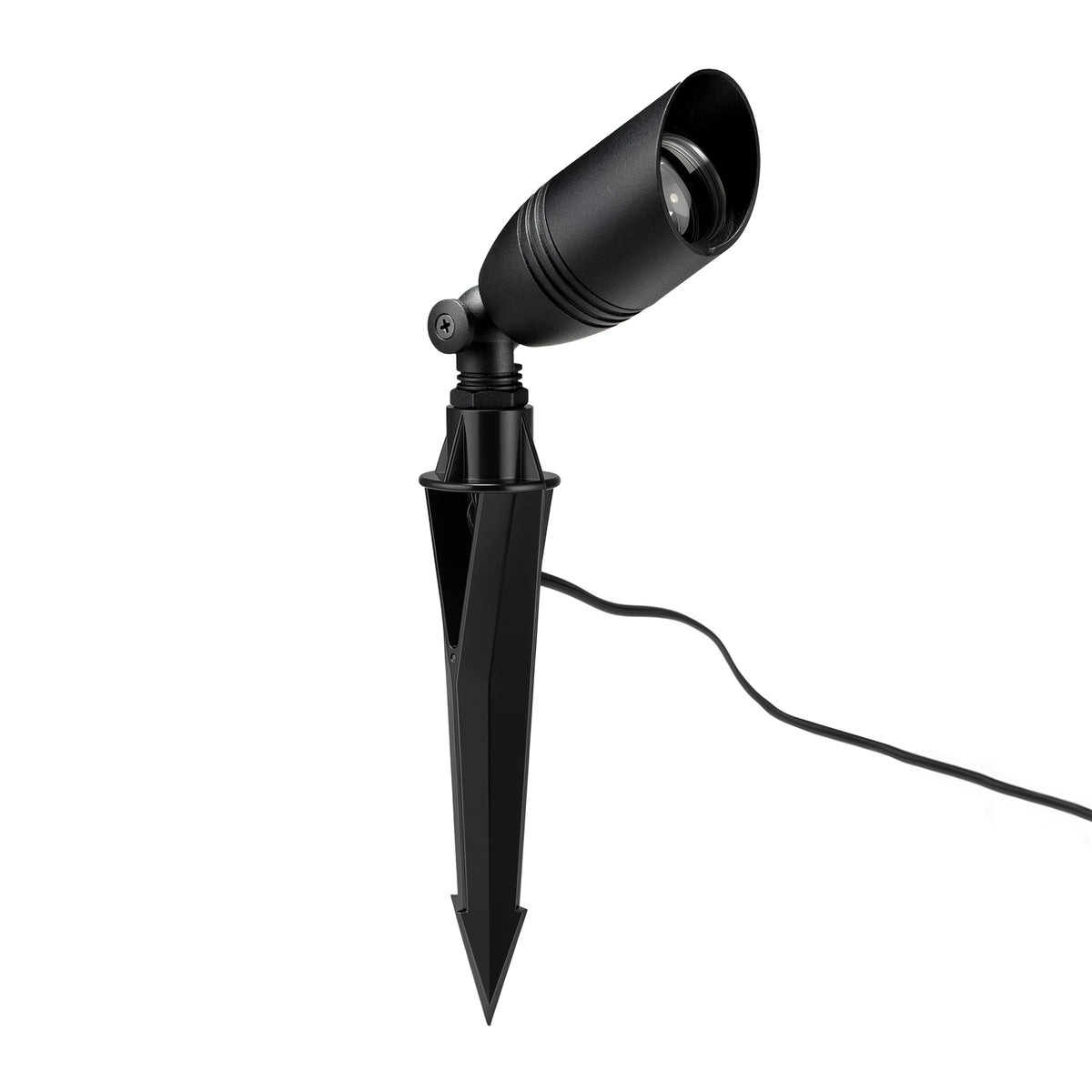

HIBOITEC Spotlight in sand black — single fixture with adjustable head and ground stake

HIBOITEC Spotlight in sand black — fixture and ground-stake dimensions in inches

HIBOITEC Spotlight in sand black — shroud lifted to reveal the MR16 bulb

HIBOITEC Spotlight in sand black — MR16 bulb being removed from the socket

HIBOITEC Spotlight in sand black — open lamp housing showing the socket and sealing ring

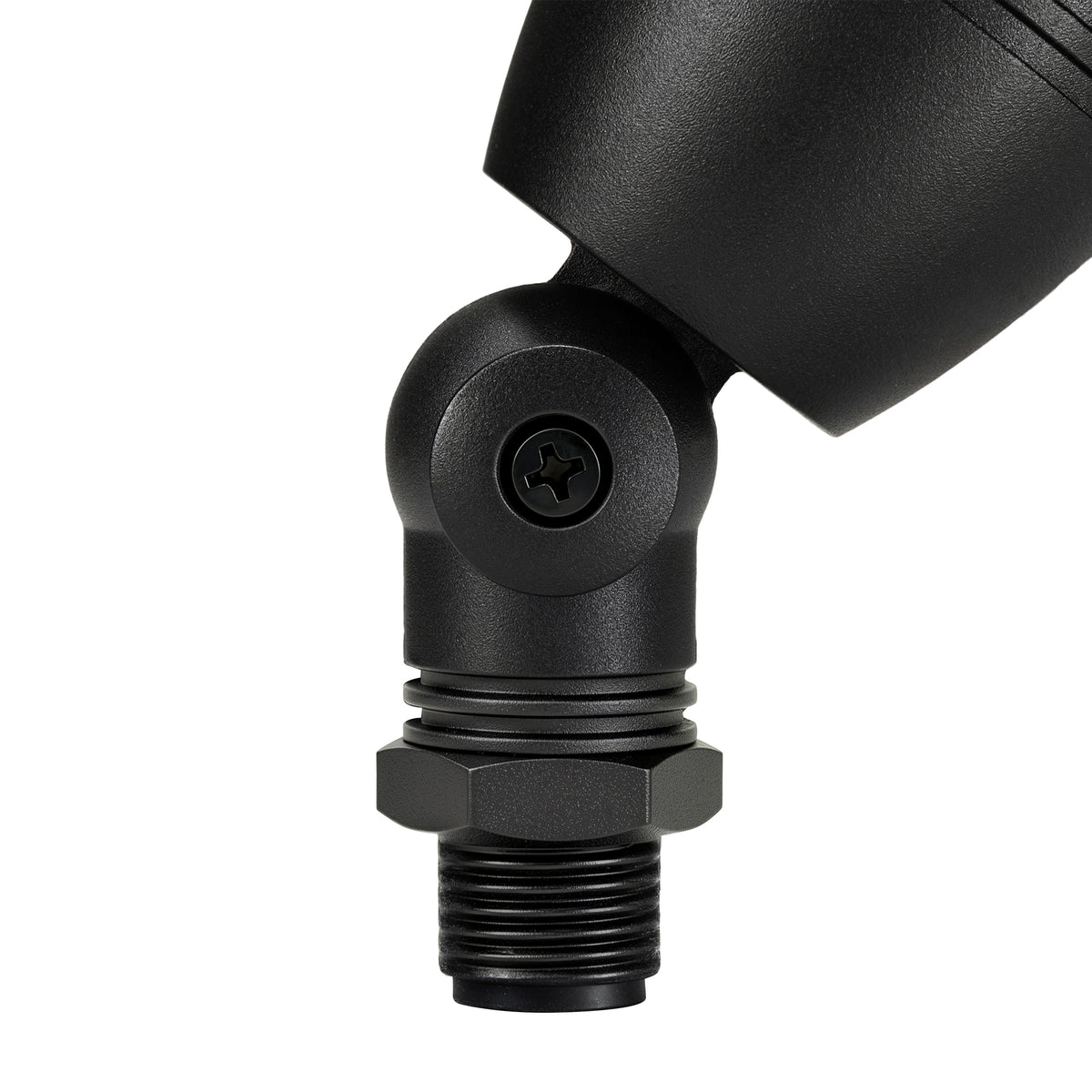

HIBOITEC Spotlight in sand black — close-up of the adjustable knuckle and threaded base

HIBOITEC Spotlight in oil rubbed bronze — single fixture with adjustable head and ground stake

HIBOITEC Spotlight in oil rubbed bronze — fixture and ground-stake dimensions in inches

HIBOITEC Spotlight in oil rubbed bronze — shroud lifted to reveal the MR16 bulb

HIBOITEC Spotlight in oil rubbed bronze — MR16 bulb being removed from the socket

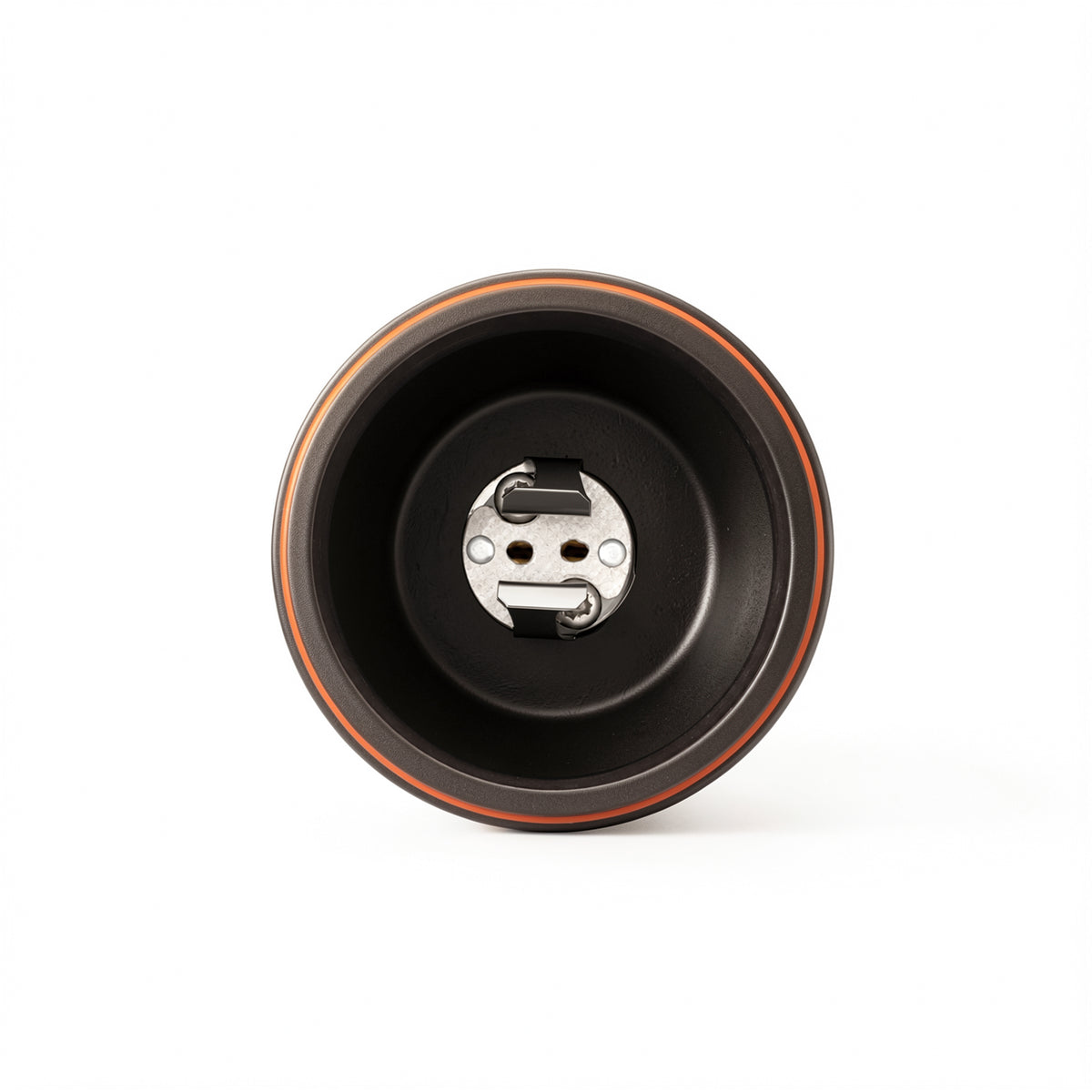

HIBOITEC Spotlight in oil rubbed bronze — open lamp housing showing the socket and sealing ring

HIBOITEC Spotlight in oil rubbed bronze — close-up of the adjustable knuckle and threaded base

Spotlight · Trees · Facade

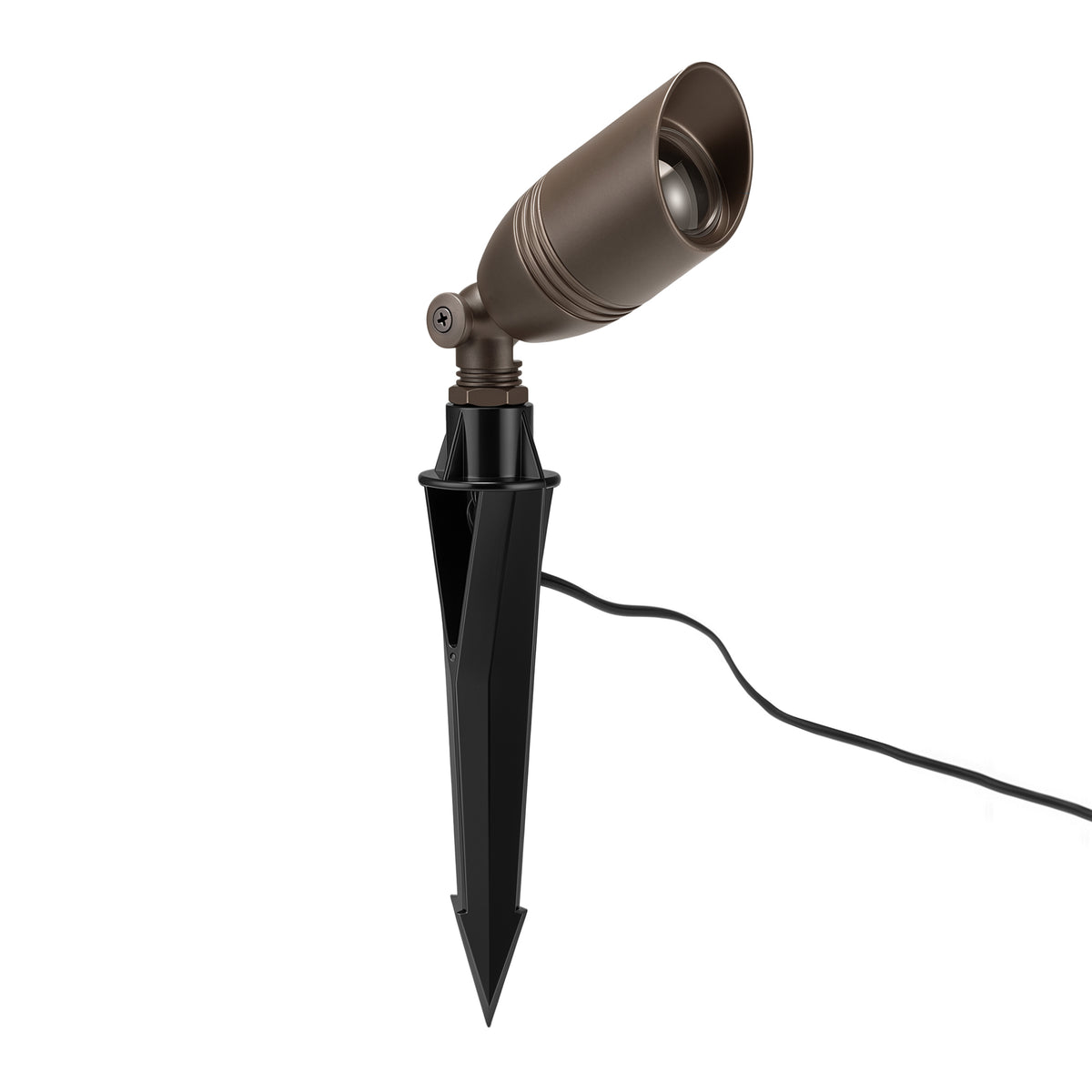

Spotlight — Replaceable MR16

450 lm

a light, 2700 K

36°

beam, set by the bulb

180°

of tilt

The bulb is a stock MR16, GU5.3, 12 V — and the bulb sets the beam. It ships at 36°; a 15° MR16 reaches the top of a tall trunk, a 60° one washes a wall. Same socket, same fixture.

Finish: Sand Black

Pack: 2 lights

2 lights 4 lights 8 lights 12 lights

$39.91

$19.96item

Shipping calculated at checkout.

Each light comes with its MR16 bulb, stake and two connectors. Transformer and main wire not included.

Ships from the U.S. warehouse. Free shipping over $35; orders leave in 1–2 business days.
10-year warranty on the aluminum fixture: terms.
30-day returns from delivery, no reason needed. Eligibility and shipping costs: policy.
Wiring and sizing questions answered within one business day.

Why the bulb comes out

A landscape light fails at its weakest point — usually the LED or its driver. Sealed shut, neither can be reached, so the unit you replace is the whole fixture: a five-dollar part, a hundred-and-sixty-dollar purchase.

Here the head opens and the MR16 pulls off its two pins. The stake stays buried, the connector stays clipped, and the part you buy is the part that failed.

It does not save you the trip — connections and wire runs fail either way. It decides what you carry in your hand when you get there.

It also makes the beam yours: a narrower or a wider MR16 goes in the same GU5.3 socket.

Five-year arithmetic on a whole yard: Plan my yard. Inside the warranty the replacement is ours — order number, product name, one photo. Warranty terms

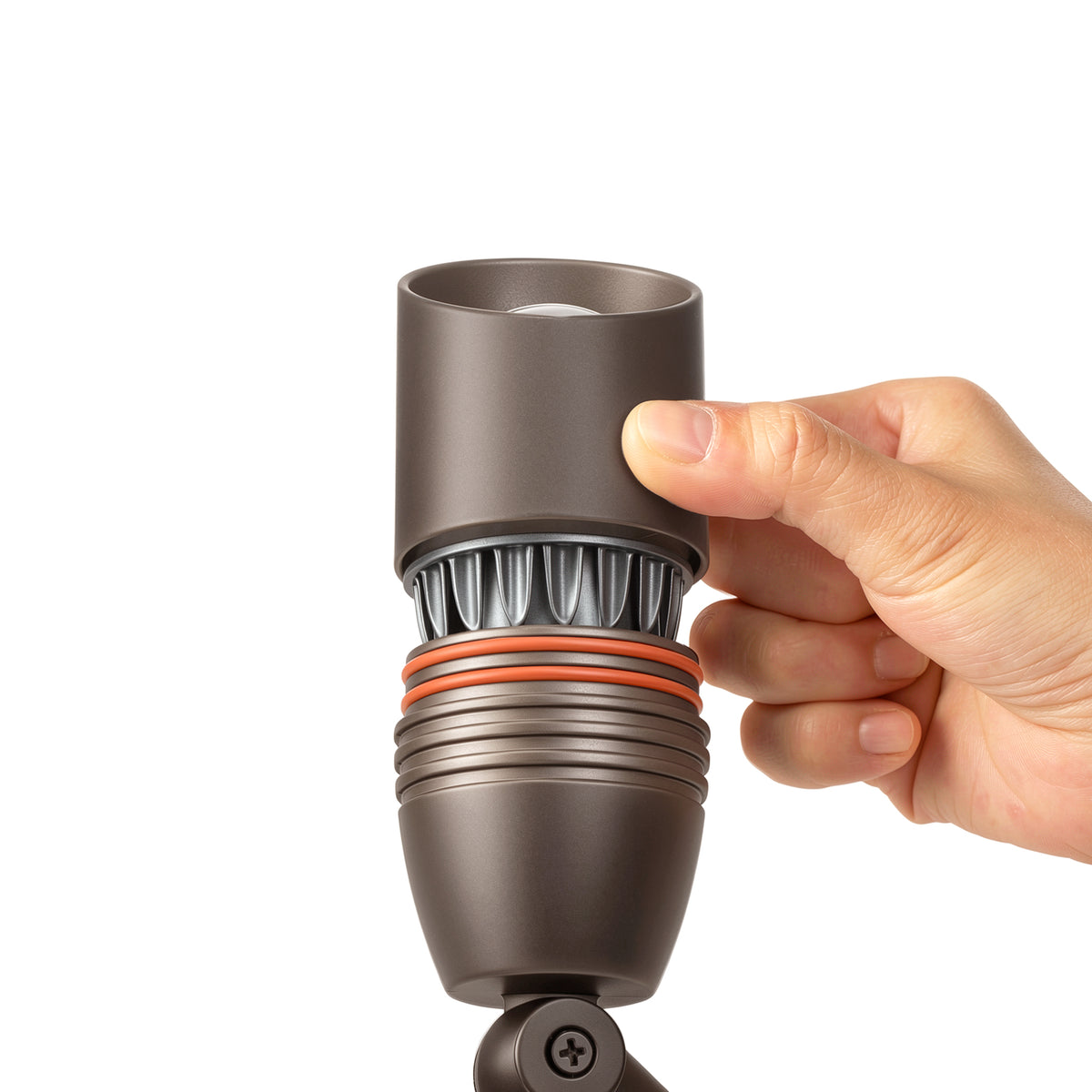

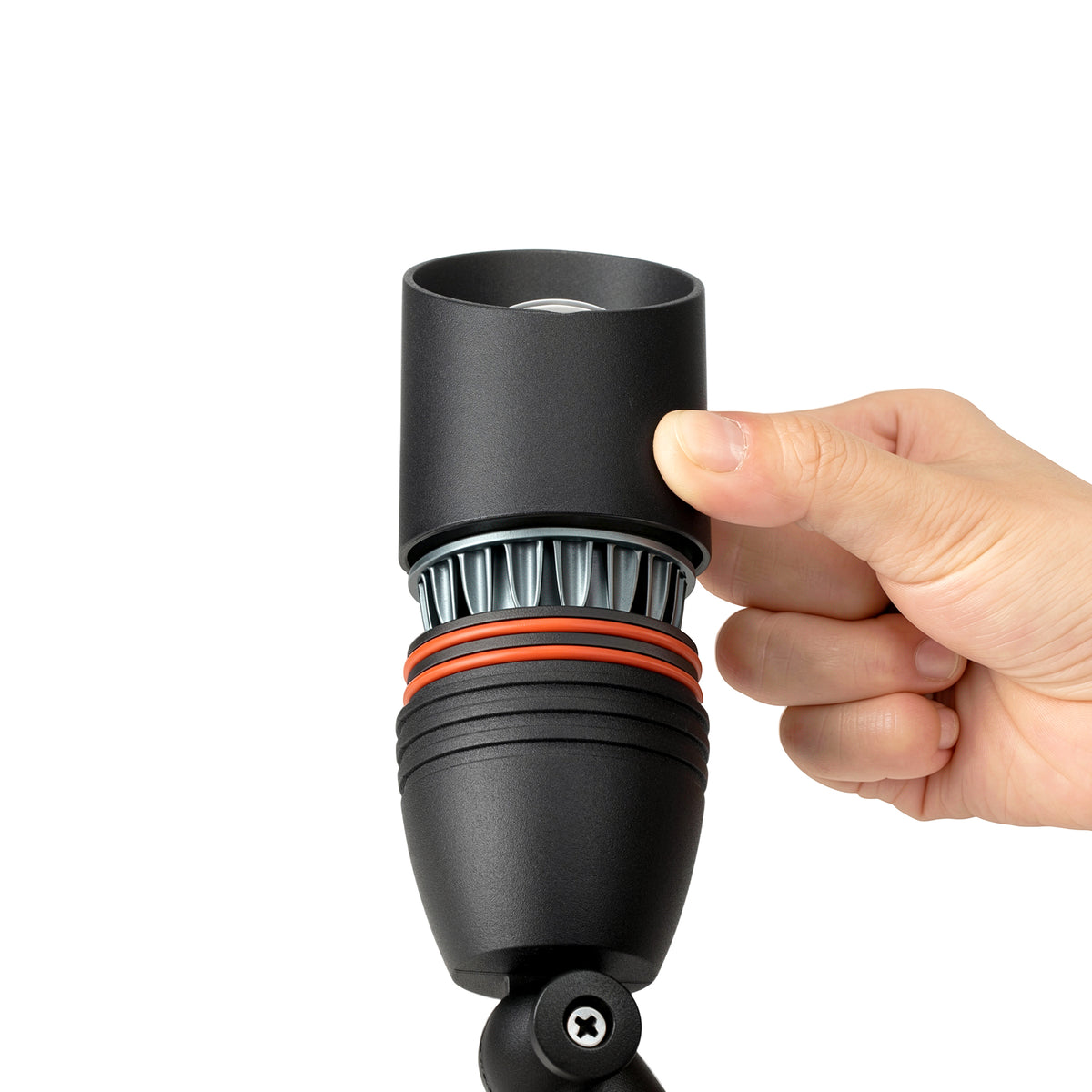

Remove the shroud to access the MR16 bulb.

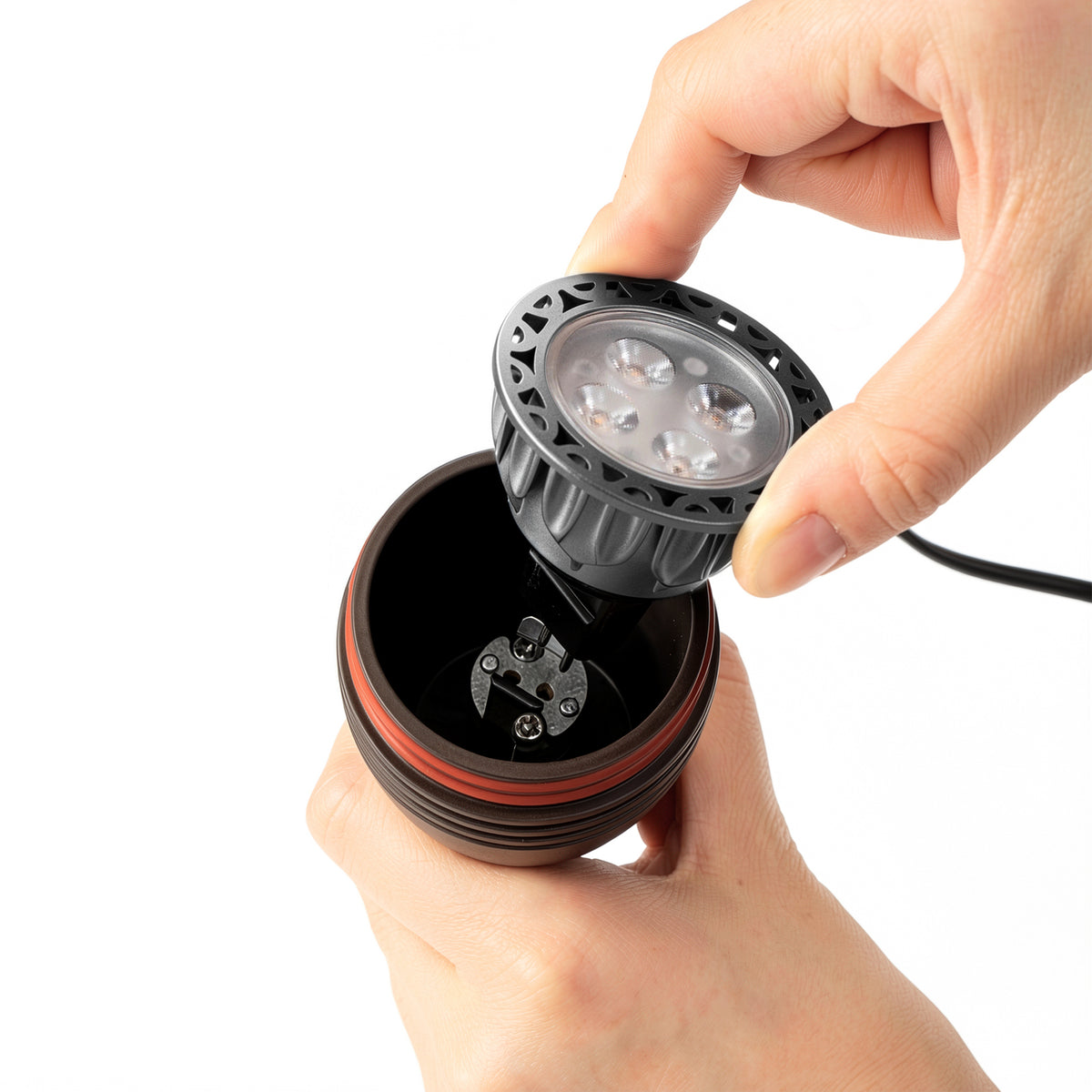

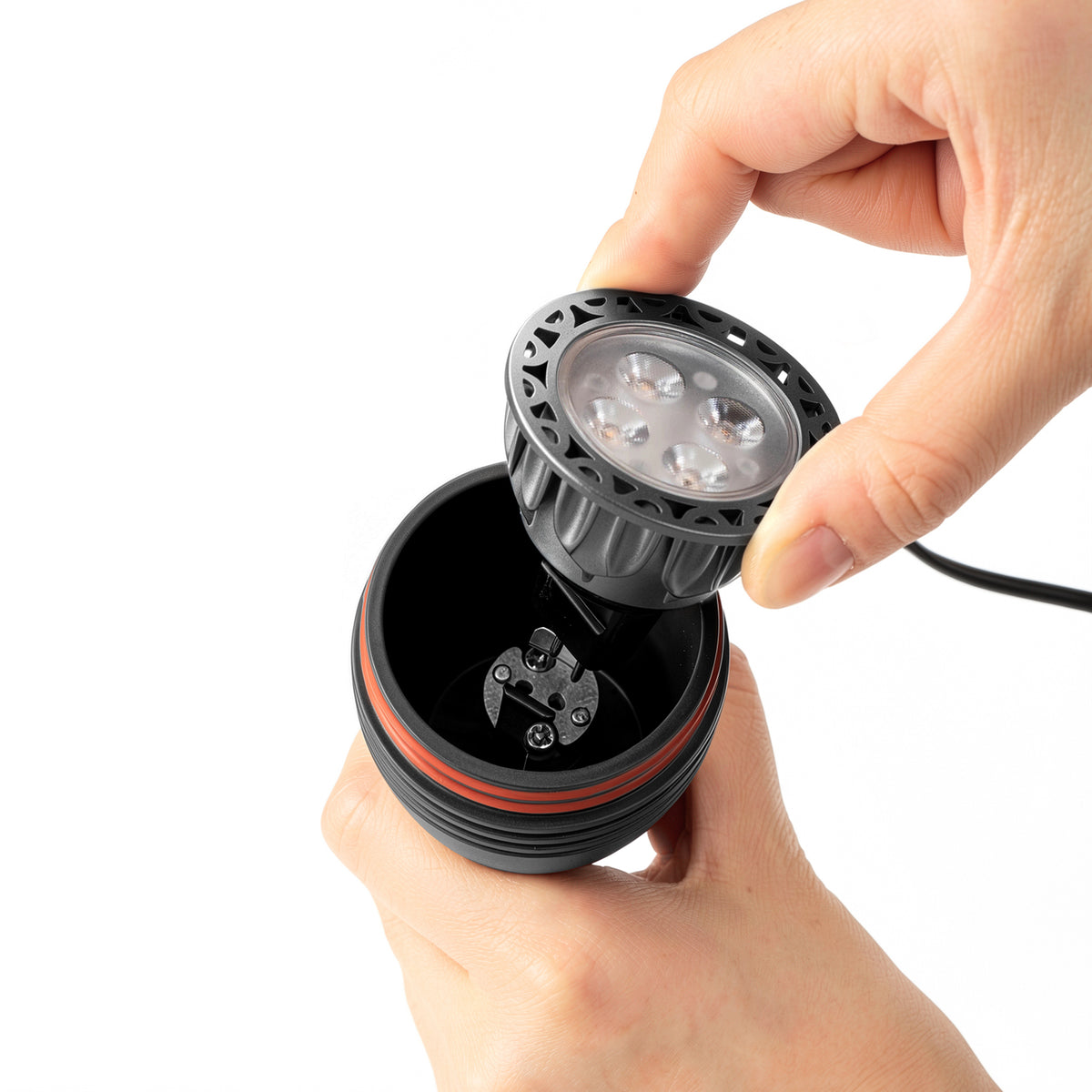

Pull the MR16 bulb straight out of its socket.

Where this light goes

It throws a 36° beam up or across. Everything below is about what the beam lands on.

Use it here

Trees	One at the base of a small trunk, two on a big one from opposite sides, aimed up into the canopy. For a tall, narrow trunk, a 15° MR16.
House wall, columns	Close to the wall, aimed up: the beam grazes the texture.
Shrub mass, statue, flag	Behind or beside the subject, so the beam crosses your line of sight instead of following it.
Fence or hedge line	Along the base, one per section, aimed along the run.

Not this light — use these

Paths, drives	Path light — this one blinds anyone walking toward it.
Steps, deck edges	Recessed deck light — sits in the riser.
In the ground, flush	Well light — sits at grade, IP67.
Ponds, fountains	Pond light, IP68. This one is IP65 and must not stand in water.

How many, and which transformer

Count the subjects, not the feet. Every load below is this light at 5 W, with the transformer sized to 80% of its rating.

Lights	Load on the run	200 W transformer	300 W transformer	600 W transformer
2	10 W	yes	yes	yes
4	20 W	yes	yes	yes
8	40 W	yes	yes	yes
16	80 W	yes	yes	yes
32	160 W	at the limit	yes	yes
48	240 W	no	at the limit	yes

A 200 W transformer carries 32 of these, a 300 W carries 48, a 600 W carries 96. One zone for the trees and one for the path is what the 2-zone transformer is for.

One group, everything it takes. Four spotlights on a tree group is 20 W: the 2-Zone Transformer at 200 W with a zone to themselves, and 100 ft of 16 AWG Landscape Wire.

Where each beam lands is a whole-yard question — Plan my yard works three yards end to end.

Putting it in

Lay them out, run the wire past the last one, clip a connector at each, power up and check, then stake them and bury the wire 6 in deep. A trowel and an afternoon for twelve. Step by step

Runs on what you have

Check this fixture's input rating, power-supply requirements and connection method before connecting it to an existing system. Follow the instructions for the exact model. Ask about compatibility

Follow the installation instructions for this product and the cable used. Mounting and cable routing depend on the fixture and its location.

Specifications

Bulb	MR16 GU5.3 LED, 5 W, 2700 K, not dimmable — replaceable, stock part
Light output	450 lm a light*, 36° beam

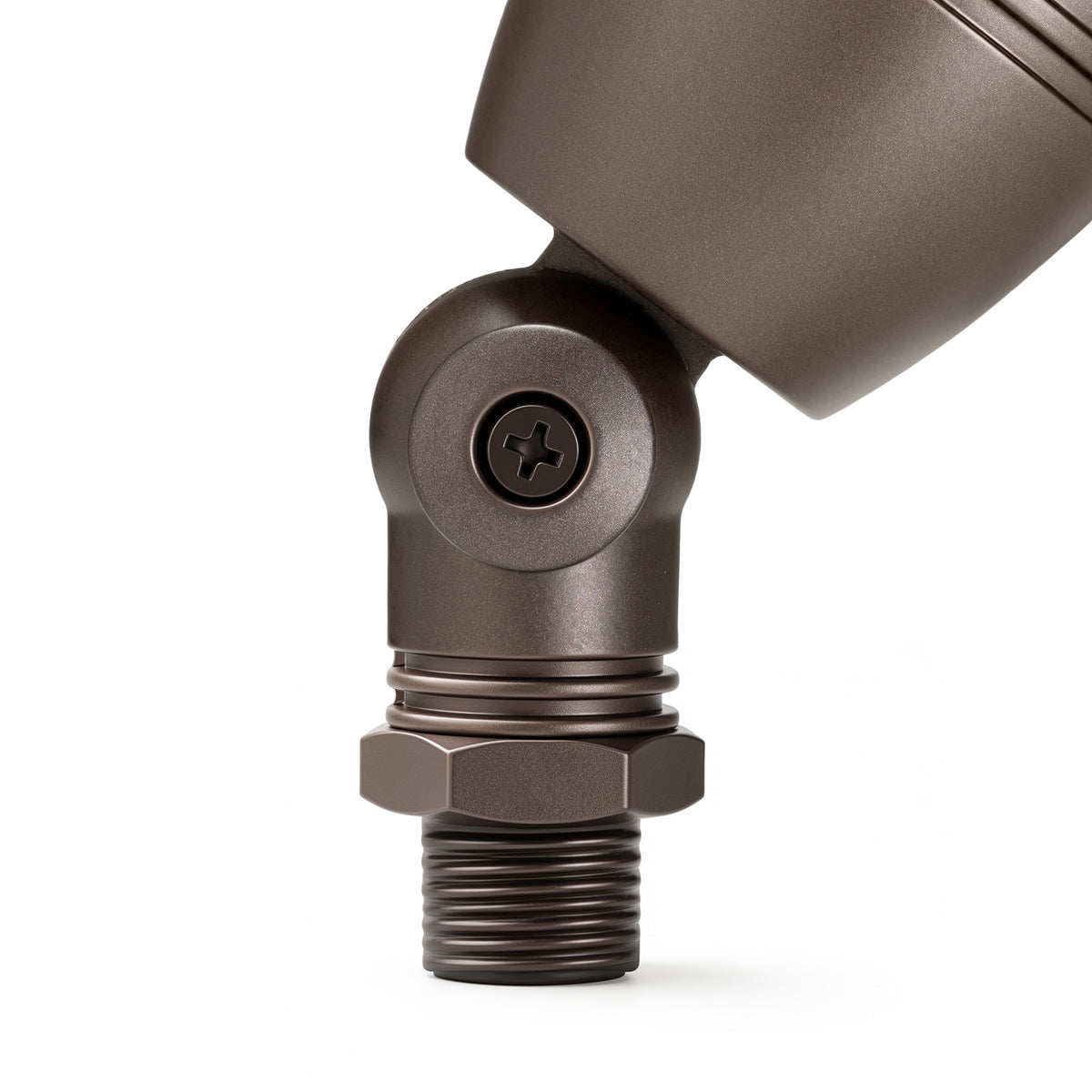

Aiming	Tilts through 180°, horizontal to horizontal through upright. No horizontal rotation — turn the stake.
Input	12–15 V AC · 12–24 V DC, non-polarized

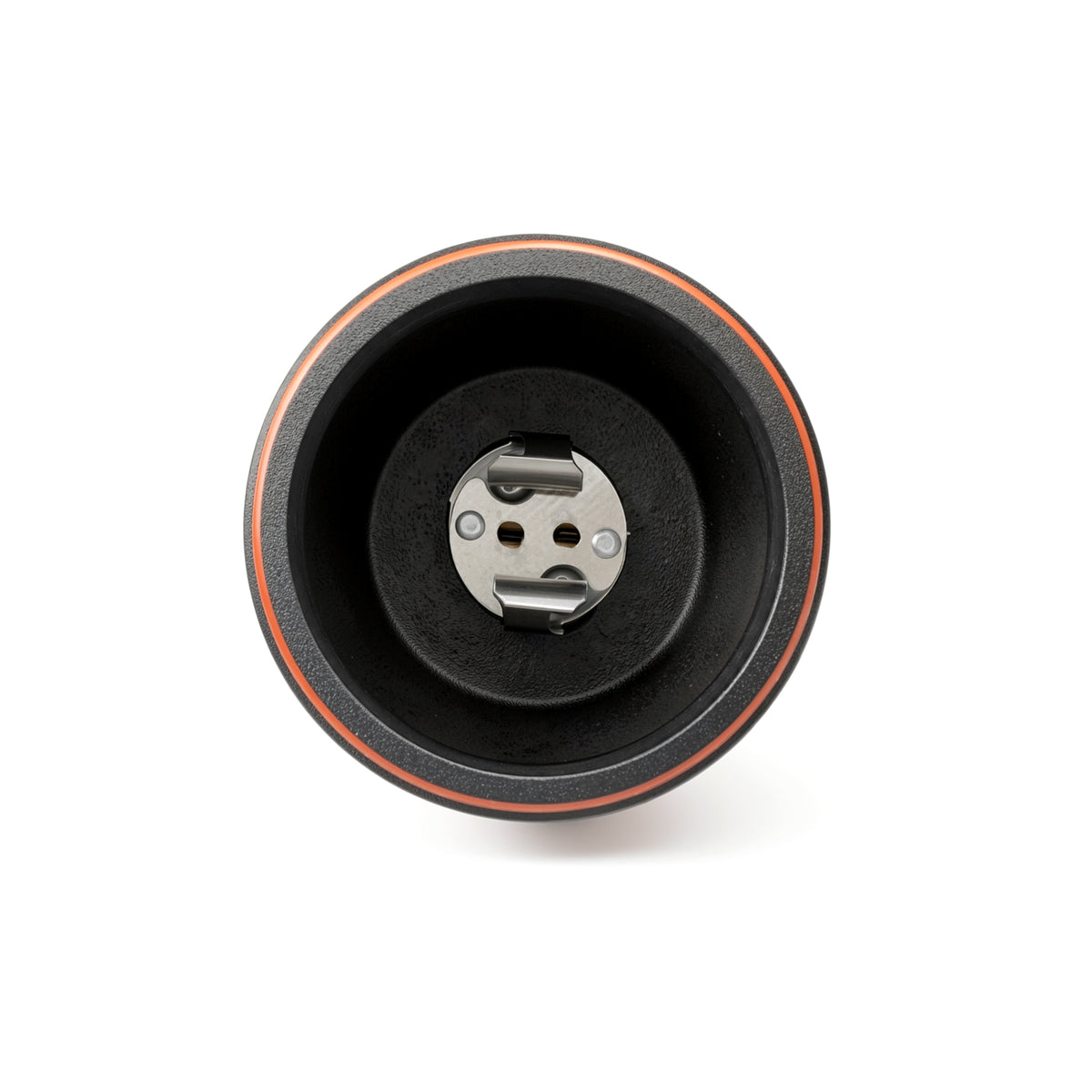

Rating	IP65 — silicone gasket, sealed lens. Not for standing water.
Material · coating	Die-cast aluminum; powder coat 70–100 μm, salt-spray tested to 500 hours

More specifications

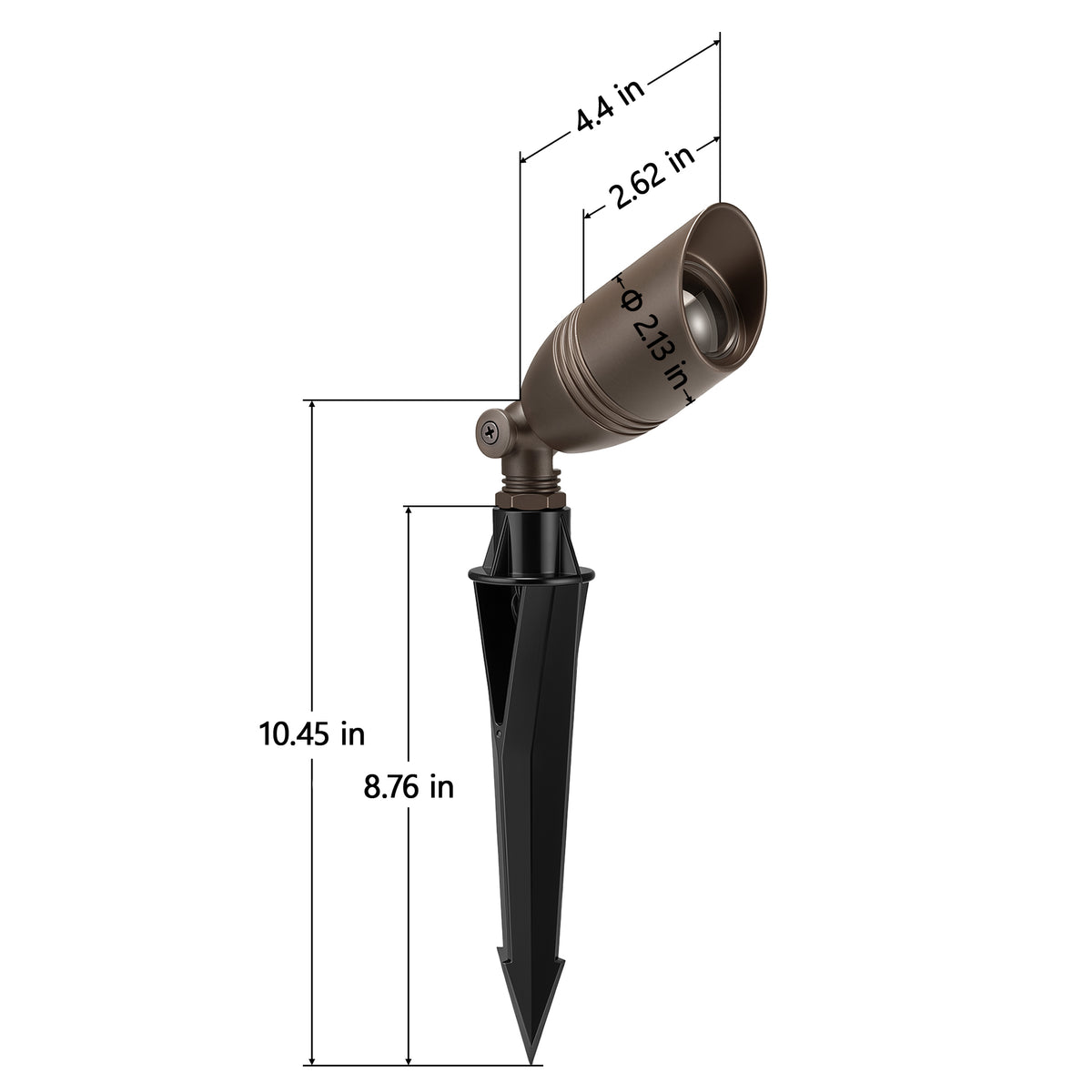

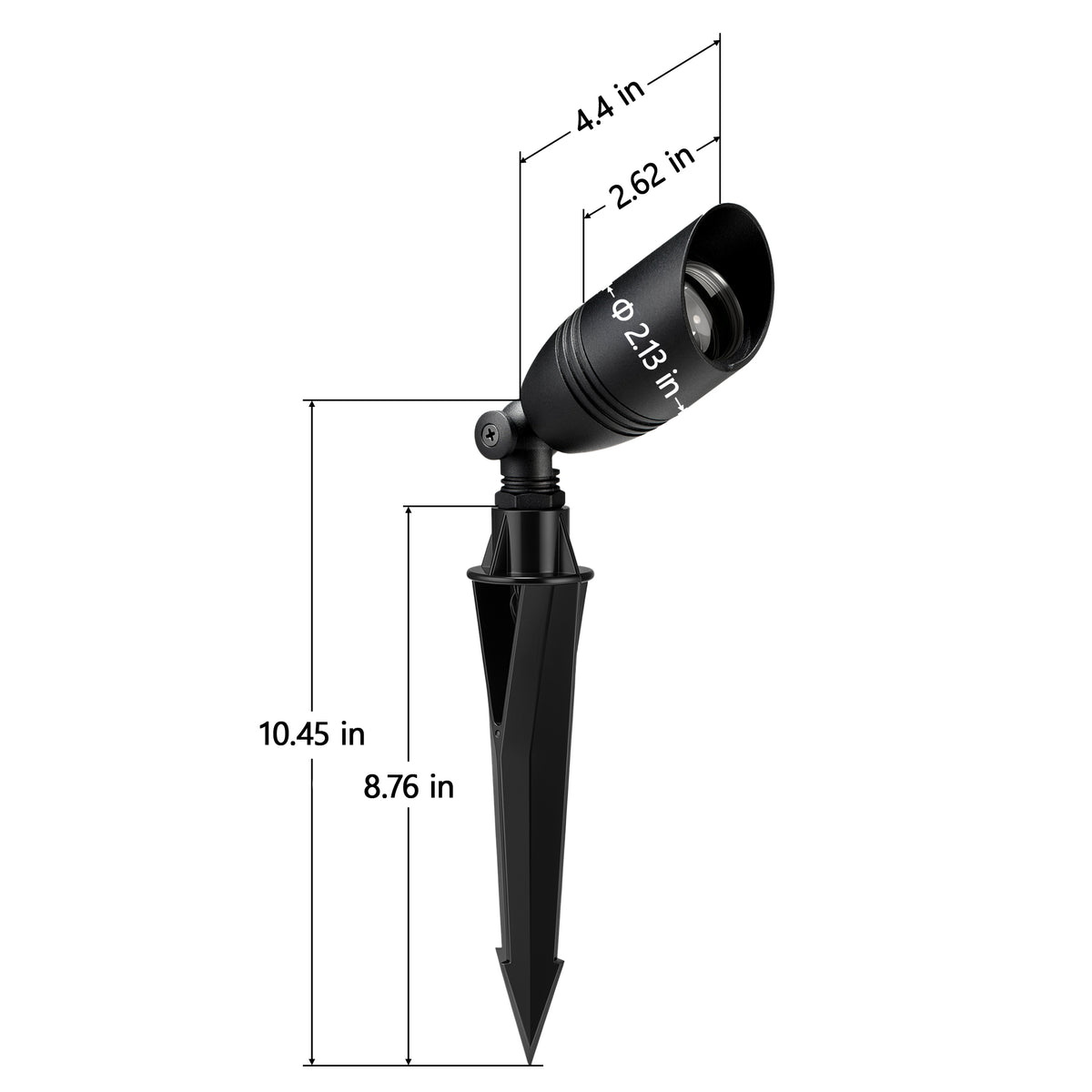

Head	4.4 in (112 mm) long; lens Ø2.13 in (54 mm), tempered glass
Height	10.45 in (265 mm) with the stake; stake 8.8 in (222 mm)
Lead wire	35.4 in (90 cm), 20 AWG
Connection	Two wire connectors per light in the box
Finish	Sand black · Oil-rubbed bronze
Certification	ETL
Model	GL57

* Manufacturer-stated; the test report is on file and is not published on this page.

What the numbers mean

36° is a beam you aim, not a glow: on a small tree it lights the canopy and leaves the lawn dark, and 2700 K keeps the bark warm.

The beam belongs to the bulb, not the fixture. A 15° MR16 throws a tight column up a tall trunk; a 60° one spreads across a wall. Any 12 V LED MR16 at 5 W or under fits, and the counts on this page still hold.

5 watts a light: a 200 W transformer runs 32, a 300 W runs 48. Two lights put 10 W on the run; four put 20 W.

The coating is the one part that never comes off — the bulb, the stake and the connector all do — so it is the one we made thick: 70–100 μm, tested to 500 hours in salt spray*. It meets sprinkler water, a trimmer at the base, wet soil, and winter salt.

Questions people ask

The bulb went out — what do I buy?

An MR16, GU5.3, 12 V, 2700 K, not dimmable — the spotlight bulb any hardware store stocks. Ours is the MR16 LED bulb, 5 W, 450 lumens.

Can I change the beam?

Yes — the beam belongs to the bulb. It ships with a 36° MR16; a 15° one throws a tight column up a tall trunk, a 60° one spreads across a wall or a hedge. Any 12 V LED MR16 with GU5.3 pins fits. Keep it at 5 W or under so the counts on this page hold.

Can I turn it sideways?

It tilts through 180°, horizontal to horizontal through straight up. It does not rotate on the stem — to change the direction, turn the stake.

Can it sit in a wet bed?

Rain and snow, yes — IP65, tempered-glass lens on a silicone gasket. Standing water, no. For that use the well light or the pond light.

Is a transformer included?

No. The box has the spotlights, their MR16 bulbs, stakes and two connectors each. They run on a 12 V landscape transformer and direct-burial main wire — ours are the 2-Zone Transformer and Landscape Wire. Already have a system? They go on it.

Will it run on the 12 V transformer I already own?

Input is 12–15 V AC or 12–24 V DC, non-polarized, which covers standard landscape transformers. Never connect it to 120 V.

What is the warranty?

Ten years on the aluminum fixture. The bulb has its own terms on the warranty page. A claim is the order number, the product name and one photo; the replacement ships from the U.S. warehouse. Warranty terms

Can I return it?

Return eligibility, return shipping costs and refund approval are governed by our Return Policy. Contact support@hiboitec.com before sending any item back. For a damaged, missing or faulty item, include your order number, product name and a photo so we can review the issue. Return policy

In the box

Spotlights	2 / 4 / 8 / 12, per selected pack
MR16 bulbs	Installed, one per light
Stakes	One per light
Wire connectors	Two per light
Manual	1

If a part is missing

Email the part name and a photo; the replacement ships from the same U.S. warehouse. Contact us

Fulfilment, not warranty — the two are answered separately.
