Path light · Pathway · Garden bed

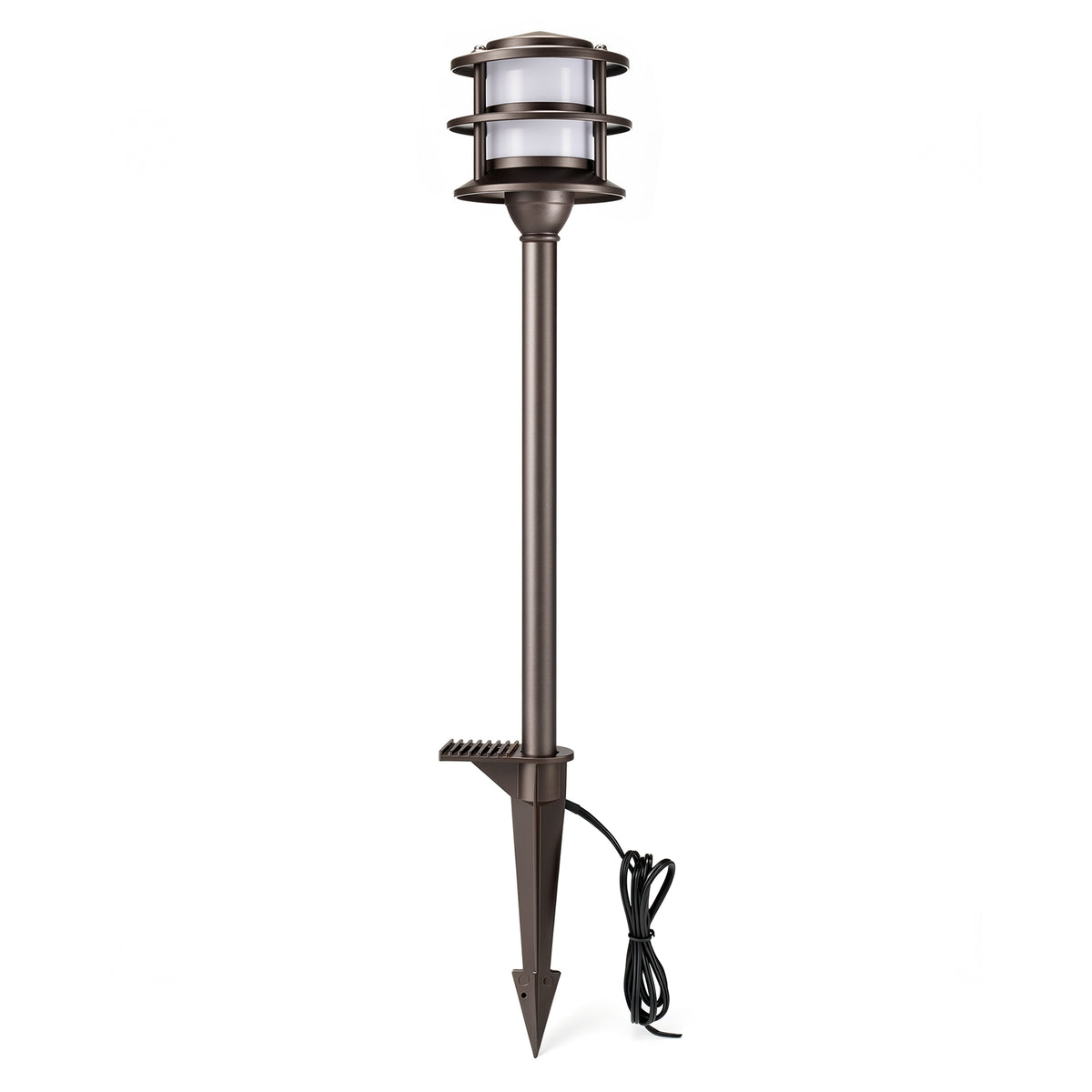

Pagoda Path Light — Replaceable G4
Each light comes with its G4 bulb, stake and connector; the 6-pack adds a spare bulb, the 12-pack two. Transformer and main wire not included.
Why the bulb comes out
This light uses a replaceable G4 bulb, so the bulb can be changed while keeping the fixture.
Disconnect power before opening the head or changing the bulb. Follow the instructions for your exact model, and restore the lens and seal correctly before use.
Choose a replacement that matches the fixture's rated input, AC/DC requirements, wattage limit and available space. A matching G4 base or a different color temperature alone does not confirm compatibility.
Standalone G4 bulbs are not currently available to order on this website. Contact our support team to confirm a suitable replacement and current availability.

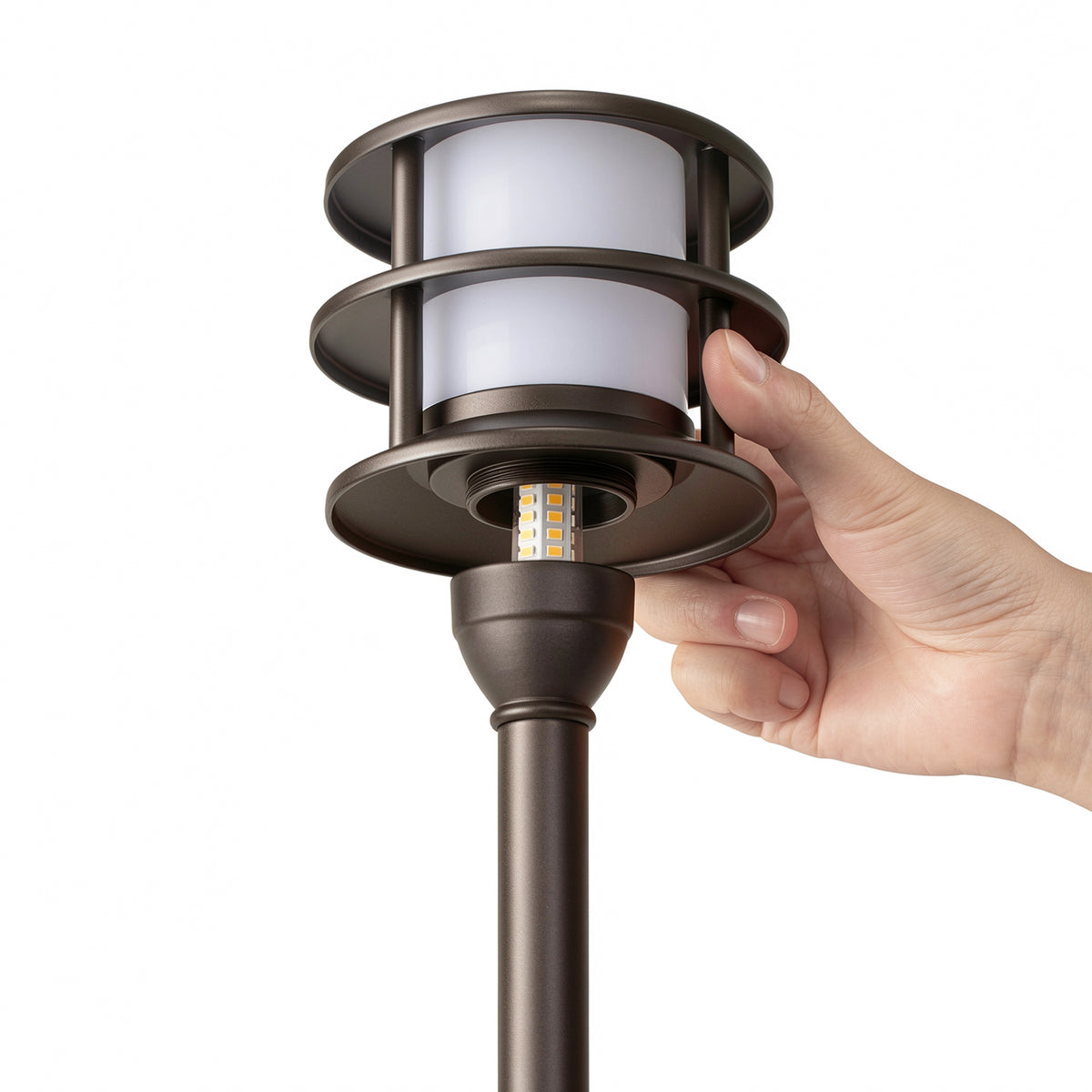

Lift the three-tier shade to access the G4 bulb.

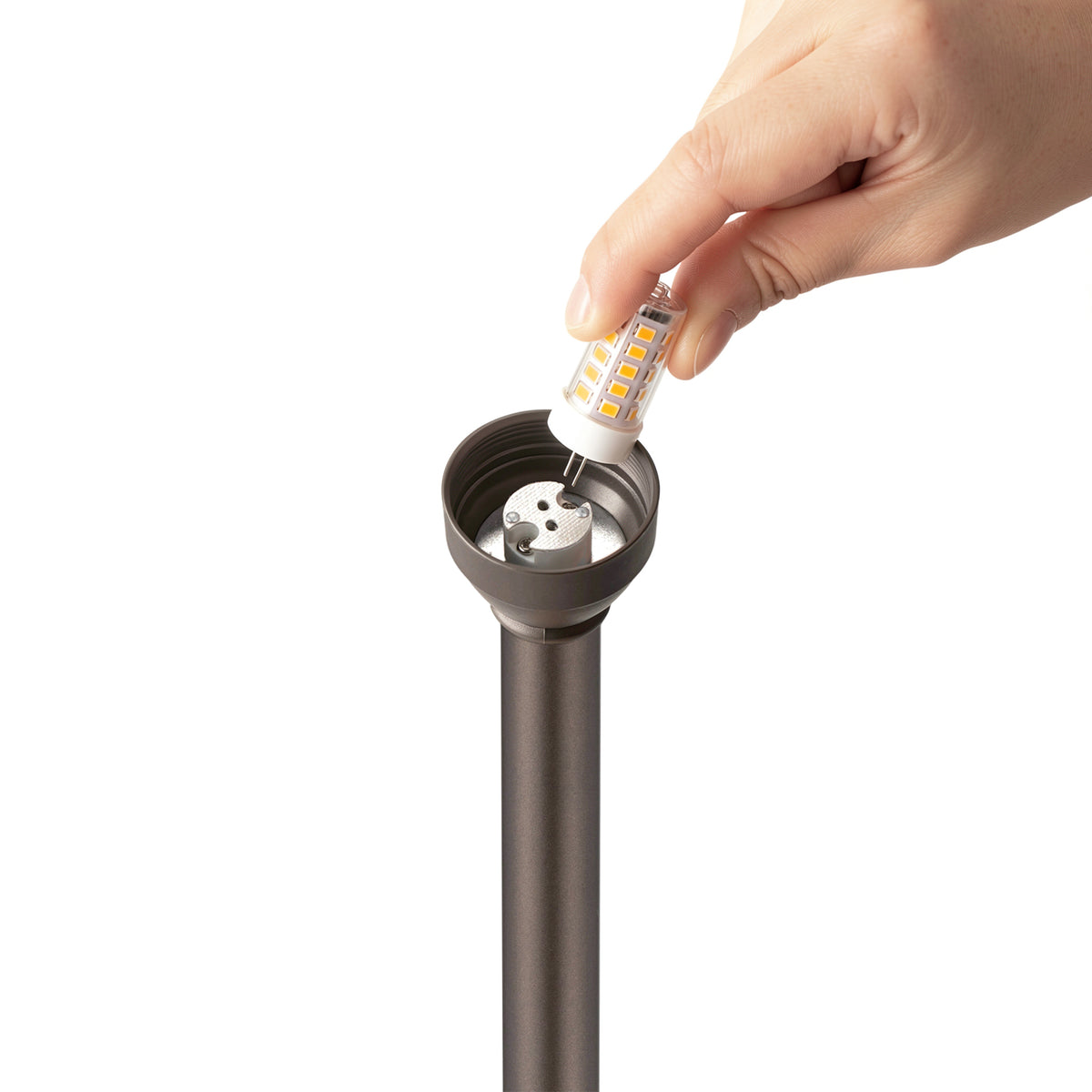

Pull the G4 bulb straight out of its socket.
Where this light goes
Use it here
| Garden bed border | Between the planting and the lawn, 6–8 ft apart. The pools read as a row. |
| Walkway / front path | Off the paving edge, on the lawn side. 6–8 ft apart. |
| Beside entry steps | At ground level next to the bottom step — not in the riser. |
| Patio perimeter | In the planting around the edge, not in the paving. |
Not this light — use these
| Driveway edge | China hat path light — the flat shade covers more width per light. |
| Steps, deck edges | Recessed deck light — sits in the riser. |
| Trees, house wall | Spotlight or well light — they throw light up. |
| Ponds, fountains | Pond light, IP68. This one is IP65. |
How many, and which transformer
| Walk or bed edge | 6 ft apart | 8 ft apart | 10 ft apart | Packs at 8 ft |
|---|---|---|---|---|
| 20 ft | 4 | 3 | 3 | 1 + 1 + 1 |
| 40 ft | 7 | 6 | 5 | 4 + 1 + 1 |
| 60 ft | 11 | 8 | 7 | 6 + 1 + 1 |
| 80 ft | 14 | 11 | 9 | 6 + 4 + 1 |
| 100 ft | 17 | 13 | 11 | 12 + 1 |
| 150 ft | 26 | 19 | 16 | 12 + 6 + 1 |
| 200 ft | 34 | 26 | 21 | 12 + 12 + 1 + 1 |
Putting it in
Runs on what you have
6 in is the NEC 300.5 minimum for ≤30 V landscape wiring, not our measurement.
Specifications
| Bulb | G4 bi-pin LED, 3 W, 2700 K — replaceable, stock part |

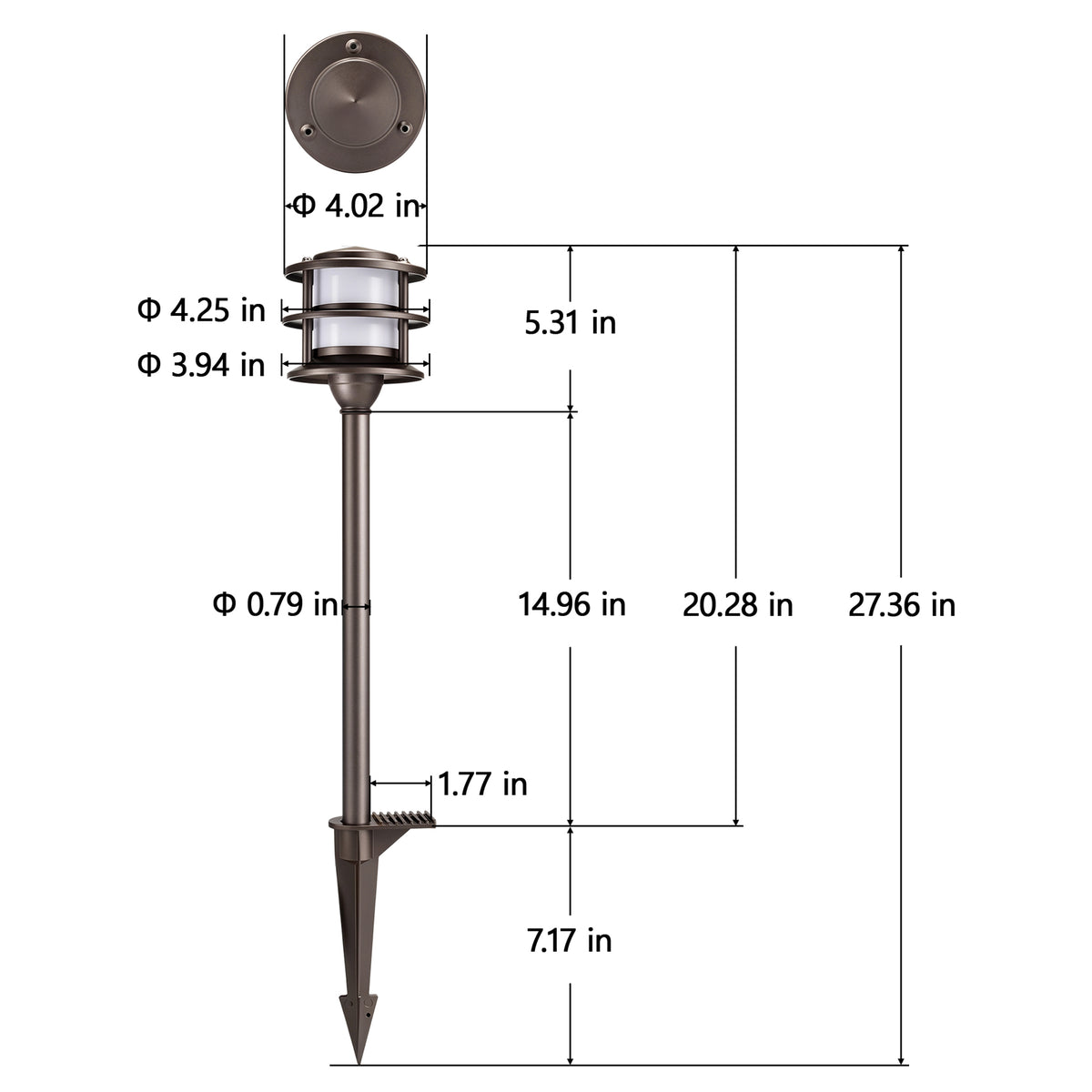

| Overall height | 27.4 in (695 mm); 20.3 in (515 mm) above ground |

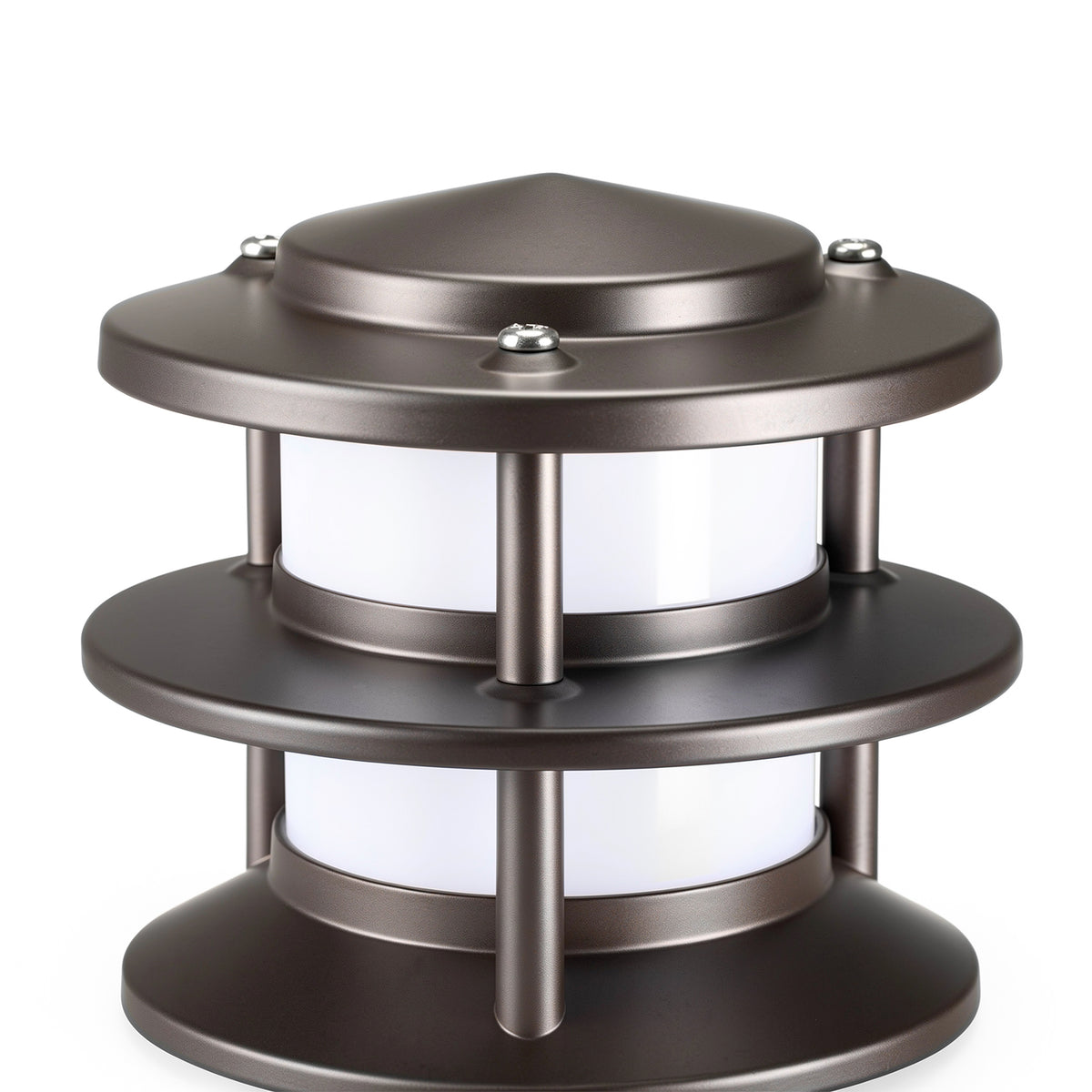

| Head | Ø4.0–4.25 in (100 / 108 mm), 5.3 in (135 mm) tall, three tiers |
| Input | 12 V AC · 12 V DC — standard landscape transformer |
| Rating | IP65 |
| Material · coating | Die-cast aluminum; powder coat 70–100 μm*, salt-spray tested to 500 hours* |
More specifications
| Stake | 7.2 in (182 mm), metal |
| Connection | Wire connector in the box, one per light |
| Operating temperature | −13 to 140 °F (−25 to 60 °C)* |
| Finish | Oil-rubbed bronze |
| Model | LJDO5 |
* Manufacturer-stated; the test report is on file and is not published on this page.
What the numbers mean
Questions people ask
The bulb went out — what do I buy?
Pagoda or china hat?
Can I use a warmer, cooler or colored bulb?
Is a transformer included?
The trimmer hit one. Now what?
Will it run on the 12 V transformer I already own?
What is the warranty?
Can I return it?
In the box
| Path lights | 1 / 4 / 6 / 12, per pack |
| G4 bulbs | Installed, one per light; the 6-pack carries one spare, the 12-pack two |
| Stakes | One per light |
| Wire connectors | One per light |
| Manual | 1 |
If a part is missing
Email the part name and a photo; the replacement ships from the same U.S. warehouse. Contact us
Fulfilment, not warranty — the two are answered separately.
Every number here comes from our own SKUs or the manufacturer's test report. The ones we have not measured are not here.
