Access the G4 bulb

Disconnect power and let the bulb cool before opening the top. Replace it with a G4 bi-pin LED that matches the fixture’s electrical rating and available space, then secure the housing before restoring power.

Need help choosing a replacement? G4 Replacement Bulb Support

G4 bulb removed by hand from the GL59 bronze path light

G4 bulb and socket

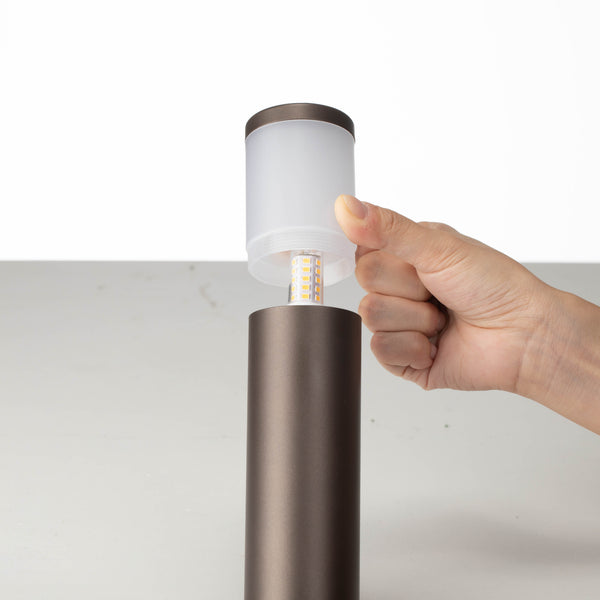

Shade removed from the GL59 bronze path light to access the bulb

Housing opened for access

Where this light goes

Use the cylinder profile to mark a route or planting edge. Trial the position after dark before installing.

Use it here

Entry walk Place beside the paving to mark the route to the door.
Narrow side path Keep the fixture clear of the walking surface and allow room for maintenance.
Low hedge Set in front of the planting where foliage will not cover the light.
Bed-to-lawn edge Position on the planting side, clear of mower and trimmer paths.

Not this light — use these

Downward path lighting Consider a shaded path light, such as China Hat, when you want light directed toward the ground.
Steps, deck edges Recessed deck light — sits in the riser.
Trees, house wall Spotlight or well light — they throw light up.
Ponds, fountains Pond light, IP68.

Plan the layout and power

Start with a straight run and a trial spacing. Counts include both ends; test the effect after dark before final installation.
Run length 6 ft max gap 8 ft max gap 10 ft max gap Packs at 8 ft
20 ft 5 4 3 4
40 ft 8 6 5 6
60 ft 11 9 7 4 + 4 + 1
80 ft 15 11 9 6 + 4 + 1
100 ft 18 14 11 12 + 1 + 1
150 ft 26 20 16 12 + 4 + 4
200 ft 35 26 21 12 + 12 + 1 + 1

Includes both ends of one straight run: divide length by spacing, round up, then add one. These trial spacings are layout examples; check the light after dark.

Example: a 60 ft run with gaps no greater than 8 ft needs 9 lights, spaced 7.5 ft apart. Their total load is 27W with the supplied 3W bulbs.

For curved paths or lights on both sides, plan each run separately and add the counts.

Before installation

Position the lights and plan the cable route before fixing the stakes. Disconnect power before wiring. Follow the supplied instructions and applicable installation requirements.

Match your power supply

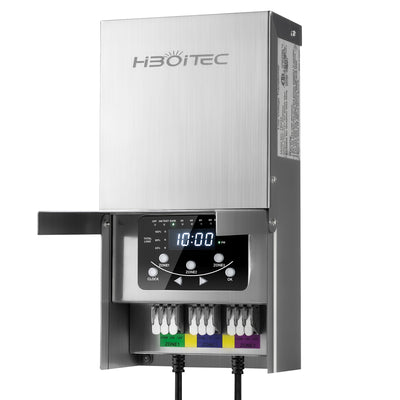

Multiply the number of connected lights by 3W, then add every other fixture on the transformer. Four, six and twelve lights use 12W, 18W and 36W. For the 3-Zone Stainless Transformer, plan the combined load across all three zones at no more than 80% of rated capacity.

6 in is the NEC 300.5 minimum for ≤30 V landscape wiring, not our measurement.

Specifications

Light source G4 bi-pin LED · 3W · 2700K
Light output 120 lumens per light (manufacturer rating)
Color rendering CRI ≥80 (manufacturer rating)
Input 12–15 V AC · 12–24 V DC
Outdoor protection IP65; not for submersion
Housing Aluminum
More specifications
Finish Sand Black · Oil-Rubbed Bronze
Pack sizes 1, 4, 6 or 12 lights
Model GL59

* Manufacturer-stated; the test report is on file and is not published on this page.

What the numbers mean

2700K gives a warm white appearance. The manufacturer rates each light at 120 lumens; this is not a coverage-distance guarantee. IP65 is for outdoor rain and dust, not submersion.

Questions people ask

Which replacement bulb should I use?

Use a compatible G4 bi-pin LED. Match the input type, voltage, wattage and physical clearance; the base alone does not establish compatibility. Keep 2700K for the original warm white color. Ask about a replacement bulb

Is this a solar light?

No. It is a wired low-voltage path light powered by a compatible transformer or power supply.

How much power does each pack use?

With the supplied 3W bulbs, packs of 1, 4, 6 and 12 lights use 3W, 12W, 18W and 36W respectively. Add all other lights on the same transformer when calculating the load.

What is the warranty?

The aluminum fixture is covered for 10 years; HIBOITEC G4 bulbs for one year. Registration is not required. Contact support@hiboitec.com with your order number, product name and a photo. Warranty terms

Can I return it?

Return eligibility, return shipping costs and refund approval are governed by our Return Policy. Contact support@hiboitec.com before sending any item back. For a damaged, missing or faulty item, include your order number, product name and a photo so we can review the issue. Return policy

In the box

Path lights 1 / 4 / 6 / 12, per pack
G4 LED bulbs One 3W G4 LED bulb per light
Ground stakes One per light
Wire connectors Included
Manual 1

If a part is missing

Email the part name and a photo; the replacement ships from the same U.S. warehouse. Contact us

Fulfilment, not warranty — the two are answered separately.

Every number here comes from our own SKUs or the manufacturer's test report. The ones we have not measured are not here.
